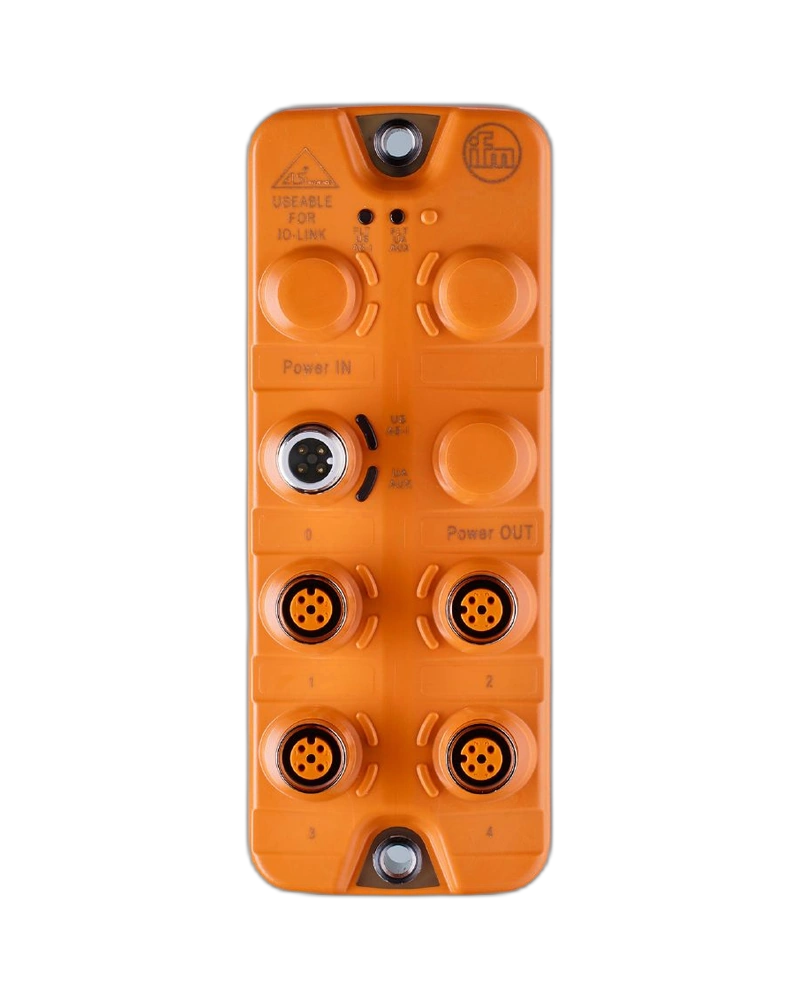

IFM AC5050 is a passive power distributor designed for AS-i and IO-Link-related field power distribution. It provides multiple connection points in a compact field-mounted housing. The unit supports industrial power distribution while incorporating overcurrent detection. Its IP67 construction makes it suitable for demanding field environments. AC5050 is useful for simplifying power distribution between automation components.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
AC5050 helps distribute electrical power to multiple field connections without requiring a complex active electronics architecture. It can operate in AS-i and IO-Link power-distribution applications depending on the configuration. The distributor supports both primary and auxiliary supply concepts. Integrated overcurrent detection adds a useful protection function. This makes it suitable for decentralized automation installations.
The compact field housing is designed for direct machine-level installation. IP67 protection supports applications exposed to dust and water when correctly installed. M12 connection technology simplifies connection of compatible field devices. The unit can help reduce wiring complexity around sensors and actuators. It is suitable for machinery, material handling and factory automation.
Passive power distributor
Splitter Box 4SB
IP67 protection
AS-i operation
IO-Link-related power distribution
M12 connection technology
Overcurrent detection
Field installation
Compact housing
Industrial construction
Auxiliary supply capability
CE/cULus/UKCA-related approvals
AS-i power distribution
IO-Link installations
Sensor power distribution
Actuator power distribution
Machine automation
Conveyor systems
Packaging machinery
Factory automation
Material handling
Industrial field wiring
| Specification | Details |
|---|---|
| Product Code | AC5050 |
| Product Type | Passive power distributor |
| Model | Splitter Box 4SB |
| Protection | IP67 |
| Application | Field installation |
| AS-i Voltage | 18...31.6 V DC |
| AS-i Current | Up to 4 A |
| Auxiliary Voltage | 15...30 V DC |
| Auxiliary Current | Up to 4 A |
| IO-Link Supply Voltage | 20...30 V DC |
| IO-Link Current | Up to 4 A |
| Overcurrent Detection | Yes |
| Overcurrent Threshold | Approx. 4.4 A ±0.2 A |
| Connection | M12/field connectors |
| Housing | Field-mounted |
| Dimensions | 152 × 59.3 × 38.4 mm |
| Mounting | Field mounting |
| Protection Class | III |
| Cable Interface | Industrial connector |
| Status Indication | LED depending on version |
| Installation | Machine-level |
| Manufacturer | IFM electronic |
| Approvals | CE, UKCA, cULus |
| Pack Quantity | 1 piece |
| Intended Use | Industrial power distribution |
