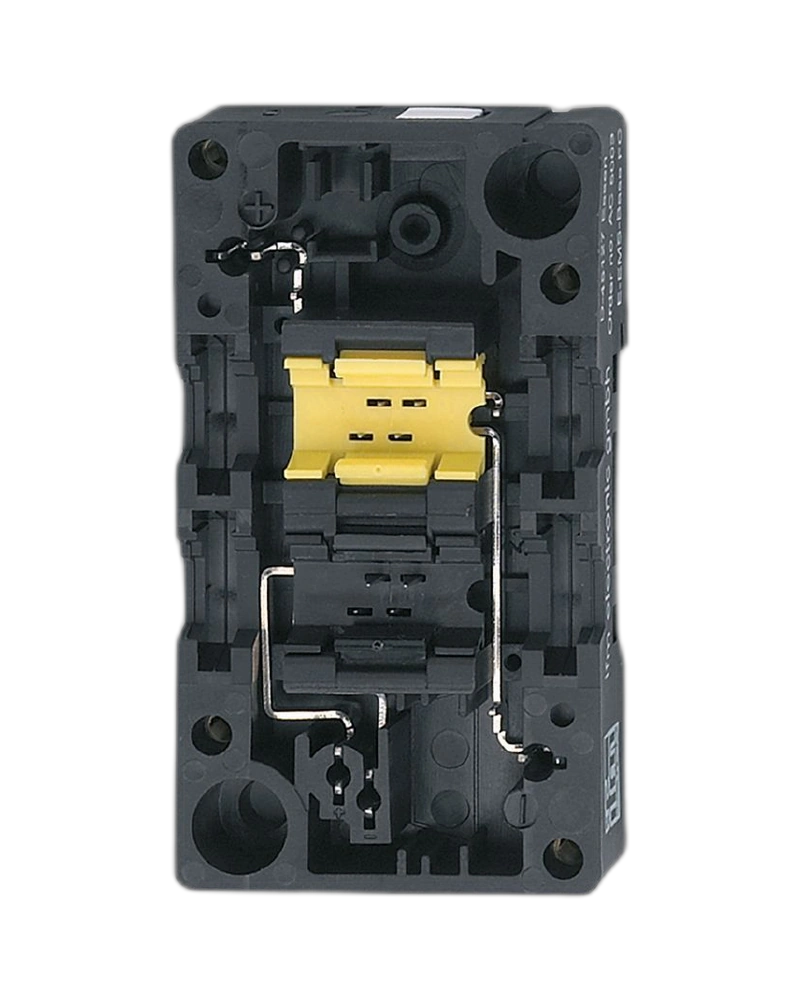

IFM AC5003 is a lower part for AS-Interface modules intended for systems using AS-i communication with an auxiliary 24 V supply arrangement. It provides the mechanical and electrical base required for compatible module upper parts. The design supports flat-cable installation and distributed field I/O architecture. AC5003 is suitable for automation systems where external 24 V DC power is required for connected field devices. Its modular construction simplifies installation, replacement and servicing.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
AC5003 is designed for configurations using AS-i together with an external 24 V DC supply. This makes it useful where connected sensors or actuators require additional available power. The architecture separates AS-i communication from auxiliary power distribution. This can improve flexibility when designing distributed automation systems. It is especially useful for modules with higher connected-load requirements.
The flat-cable design supports fast installation in industrial automation environments. The module base can be combined with compatible upper modules to create a complete field I/O assembly. Proper cable positioning and sealing help maintain the specified protection rating. The modular design also allows easier replacement of the electronics without redesigning the complete field connection. This makes AC5003 useful in machine-building and production-line applications.
AS-Interface lower part
Flat AS-i cable connection
Auxiliary 24 V DC supply concept
Compatible module upper-part interface
Industrial field installation
Modular construction
Space-efficient installation
Reliable distributed I/O connection
Suitable for ClassicLine modules
Simplified module replacement
Industrial automation design
IP67-compatible configuration
Distributed AS-i networks
Industrial machine automation
Sensor power distribution
Actuator installations
Conveyor automation
Packaging machinery
Production lines
Material handling systems
Factory automation
Remote I/O installations
| Specification | Details |
|---|---|
| Product Code | AC5003 |
| Product Type | AS-Interface module lower part |
| Interface | AS-Interface |
| Cable Type | Flat cable |
| Supply Arrangement | AS-i + auxiliary 24 V |
| Auxiliary Supply | 24 V DC concept |
| Module Connection | Module upper part |
| Mounting | Field installation |
| Protection | Up to IP67 |
| Housing | Modular industrial base |
| Housing Material | Refer to IFM datasheet |
| Electrical Connection | Flat cable |
| AS-i Connection | Yes |
| Auxiliary Connection | Yes |
| Addressing | Via compatible module |
| Installation | Distributed field |
| Application | Industrial automation |
| Temperature Range | Refer to current IFM datasheet |
| Dimensions | Refer to current IFM datasheet |
| Weight | Refer to current IFM datasheet |
| Cable Entry | Flat cable |
| Module Family | ClassicLine-compatible applications |
| Manufacturer | IFM electronic |
| Pack Quantity | 1 piece |
| Intended Use | AS-i field I/O |
