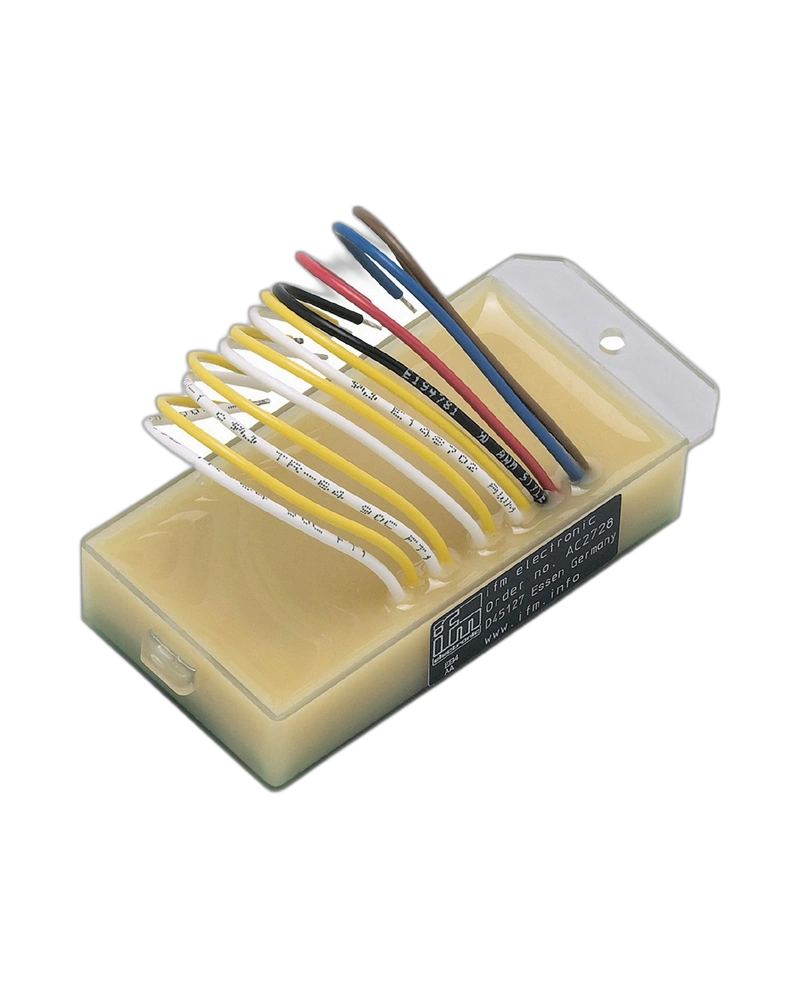

The AC2730 is an AS-Interface PCB module designed for valvehead automation and distributed machine control. It provides four digital inputs and three digital outputs for sensor and actuator interfacing. The module supports AS-i communication for efficient field-level data exchange. Its PCB construction is suitable for integration into dedicated valvehead assemblies. It is designed for compact industrial automation systems requiring reliable digital I/O.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The module supports digital signal exchange in valve-oriented automation systems. Four inputs can monitor sensors, switches or feedback devices. Three outputs can control appropriate digital actuators or valve circuits. AS-i communication transfers these signals to the automation controller. This arrangement supports compact pneumatic control architectures.
The PCB format allows integration into compatible valvehead assemblies. Its distributed architecture helps position I/O close to the controlled equipment. This reduces long conventional control wiring. The module can support modular machine construction. It is appropriate for OEM and industrial automation installations.
Digital I/O provides straightforward switching functionality. AS-i networking enables organized communication with the control system. The module can support continuous machine operation when correctly installed. It contributes to simplified field wiring. It is suitable for production and process equipment.
Network diagnostics can be used for communication monitoring. Channel-level status helps identify signal-related issues. Electrical connections should be inspected during maintenance. Valve and sensor wiring should remain correctly secured. Regular cleaning and inspection support reliable operation.
4 digital inputs
3 digital outputs
AS-Interface communication
Valvehead integration
PCB construction
Digital sensor feedback
Digital valve control
Compact architecture
Distributed I/O
Industrial application
Pneumatic automation
Valve manifolds
Machine control
Packaging systems
Assembly equipment
Process equipment
Material handling
Sensor monitoring
Actuator control
OEM machine systems
| No. | Specification | Details |
|---|---|---|
| 1 | Product Code | AC2730 |
| 2 | Product Family | AS-Interface PCB Module |
| 3 | Product Type | Valvehead Module |
| 4 | I/O | 4DI / 3DO |
| 5 | Inputs | 4 Digital |
| 6 | Outputs | 3 Digital |
| 7 | Network | AS-Interface |
| 8 | Signal | Digital |
| 9 | Construction | PCB |
| 10 | Application | Valvehead Control |
| 11 | Input Role | Sensor Feedback |
| 12 | Output Role | Actuator/Valve Control |
| 13 | Architecture | Distributed |
| 14 | Addressing | AS-i Addressing |
| 15 | Process Data | Digital I/O |
| 16 | Configuration | AS-i Master |
| 17 | Diagnostics | Network Status |
| 18 | Mounting | Integrated Valve Assembly |
| 19 | Wiring | Industrial Control Wiring |
| 20 | Installation | Machine-Level |
| 21 | Environment | Industrial |
| 22 | Maintenance | Connection Inspection |
| 23 | Typical Equipment | Pneumatic Systems |
| 24 | Control Level | Field I/O |
| 25 | System Integration | AS-i Automation |
