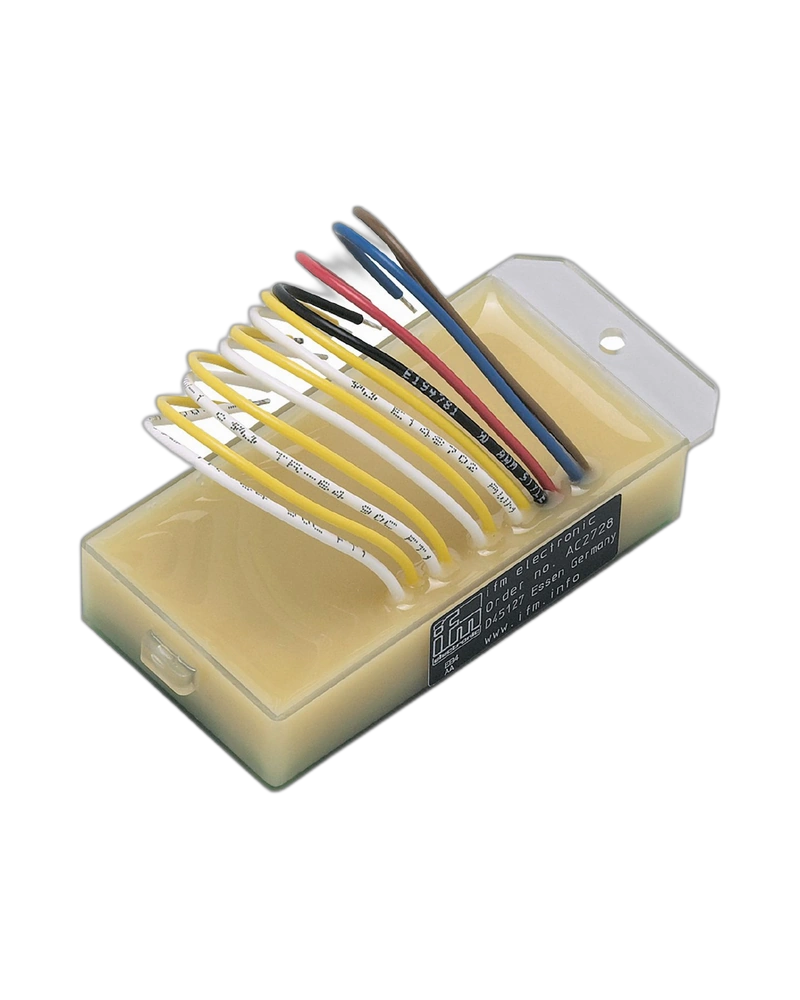

The AC2728 is an AS-Interface PCB module designed for valvehead and machine automation applications. It combines four digital inputs with three digital outputs for compact field-level control. The module enables sensors and valve-related control signals to be connected through an AS-i network. Its PCB construction supports integration into dedicated valvehead assemblies. It is suitable for distributed pneumatic and automation control systems.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The module is designed around valvehead-oriented automation requirements. Digital inputs can collect feedback from sensors and switches. Digital outputs can control suitable valve or actuator signals. AS-i communication reduces individual control wiring. This makes the module useful for compact pneumatic automation solutions.
Connected sensors provide digital status information to the input channels. Output channels transmit switching commands to connected control devices. The AS-i master exchanges process data with the module. Field-level control can therefore be distributed close to the machine. This helps simplify installation and machine architecture.
The compact PCB format supports efficient assembly integration. Combined I/O reduces the number of separate interface components. AS-i networking provides organized communication between field devices and the controller. The module supports flexible machine-level automation. It is particularly suitable for valve and pneumatic control applications.
AS-i network diagnostics can be used to identify communication problems. Digital channel status can assist troubleshooting. Connections should be inspected during scheduled maintenance. Valve wiring and sensor connections should remain secure. Clean installation conditions help maintain long-term reliability.
4 digital inputs
3 digital outputs
AS-Interface communication
Valvehead-oriented design
Compact PCB construction
Digital sensor feedback
Digital actuator control
Distributed I/O architecture
Reduced control wiring
Industrial automation integration
Pneumatic valve control
Valvehead assemblies
Machine automation
Sensor feedback
Packaging machines
Assembly systems
Material handling
Process automation
Industrial control panels
Distributed field I/O
| No. | Specification | Details |
|---|---|---|
| 1 | Product Code | AC2728 |
| 2 | Product Family | AS-Interface PCB Module |
| 3 | Product Type | Valvehead Module |
| 4 | I/O Configuration | 4DI / 3DO |
| 5 | Digital Inputs | 4 |
| 6 | Digital Outputs | 3 |
| 7 | Communication | AS-Interface |
| 8 | Signal Type | Digital |
| 9 | Construction | PCB |
| 10 | Application | Valvehead Automation |
| 11 | Input Function | Feedback/Sensor Signals |
| 12 | Output Function | Valve/Actuator Control |
| 13 | Network Type | Distributed AS-i |
| 14 | Installation | Machine/Valve Assembly |
| 15 | Addressing | AS-i Addressing |
| 16 | Process Data | Digital I/O |
| 17 | Diagnostics | Network and Channel Status |
| 18 | Configuration | AS-i Master |
| 19 | Mounting | Integrated Assembly |
| 20 | Wiring | Industrial Field Wiring |
| 21 | Environment | Industrial |
| 22 | Typical Load | Digital Actuator Circuits |
| 23 | Maintenance | Connection Inspection |
| 24 | Typical Application | Pneumatic Automation |
| 25 | Integration | AS-i Control Systems |
