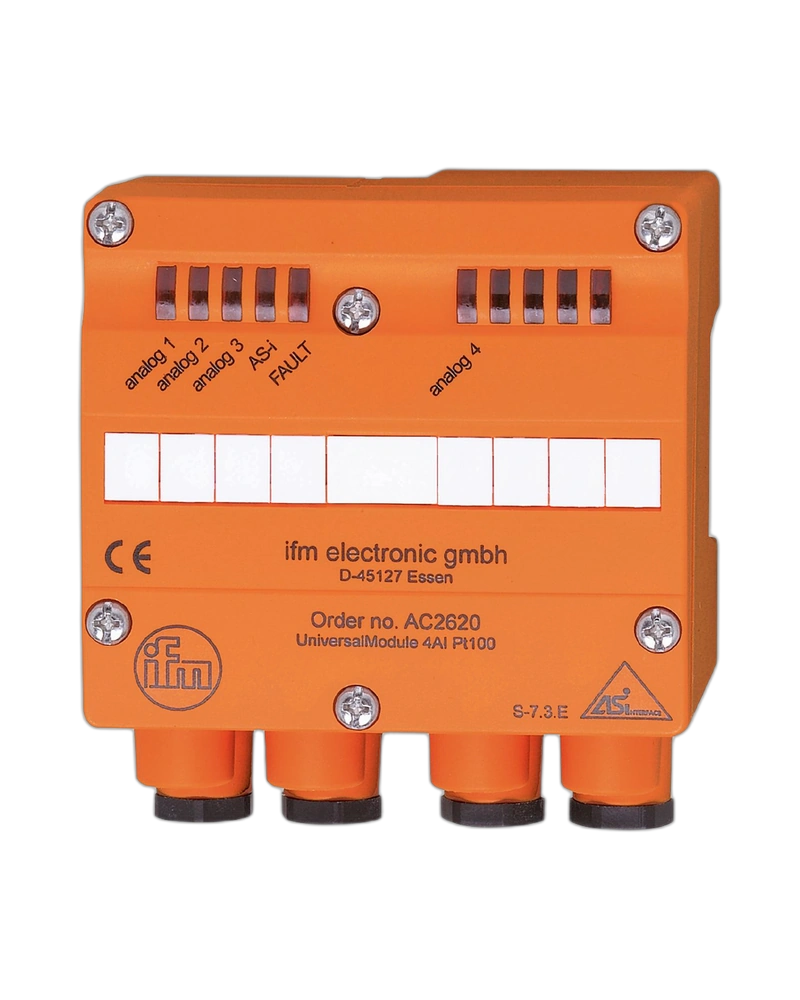

The AC2620 is an AS-Interface UniversalModule designed for four Pt100 temperature input channels. It provides decentralized temperature measurement for industrial automation applications. The IP65 construction supports installation in suitable industrial environments. AS-Interface transfers temperature process data to the automation controller. The four-channel design allows multiple temperature points to be monitored from one field location.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Four Pt100 inputs provide resistance-based temperature measurement. The module can collect temperature information from multiple process locations. AS-i communication transfers measurement data to the PLC for monitoring and control. The UniversalModule architecture supports flexible distributed installation. IP65 protection provides suitable environmental protection for appropriate field applications.
Pt100 sensors are commonly used for accurate industrial temperature measurement. Four channels allow several temperature points to be connected through one module. Temperature values can be used for alarms, process control, trend monitoring, and machine protection. The AS-i network provides the communication link to the automation controller. This supports decentralized temperature monitoring without excessive control-cabinet wiring.
Temperature channels should be monitored for abnormal values and sensor communication issues. Sensor wiring and connectors should be inspected during preventive maintenance. Field connections should remain clean and mechanically secure. Unexpected readings should be investigated by checking the sensor, wiring, and configured channel. Periodic sensor verification helps maintain dependable temperature data.
Install the module close to the Pt100 sensor group when practical. Use suitable sensor wiring and field connections. Configure the AS-i network and temperature data mapping within the PLC. Verify all four channels during commissioning. Clearly label each temperature measurement point for maintenance and troubleshooting.
4 Pt100 inputs
Temperature measurement
UniversalModule architecture
IP65 protection
AS-Interface communication
Four-channel sensing
Distributed installation
PLC integration
Process monitoring
Industrial temperature applications
Industrial temperature monitoring
Machine temperature control
Process heating
Cooling systems
Industrial ovens
Fluid processing
Production equipment
Equipment protection
Process automation
Factory monitoring
| No. | Specification | Details |
|---|---|---|
| 1 | Product Code | AC2620 |
| 2 | Product Family | AS-Interface UniversalModule |
| 3 | Product Type | Pt100 analog input module |
| 4 | Analog Inputs | 4 |
| 5 | Sensor Type | Pt100 |
| 6 | Measurement Type | Temperature |
| 7 | Protection Rating | IP65 |
| 8 | Network | AS-Interface |
| 9 | Installation | Decentralized |
| 10 | Sensor Interface | Resistance temperature sensor |
| 11 | Process Data | Temperature values |
| 12 | Addressing | AS-i |
| 13 | Master | AS-i master |
| 14 | PLC Integration | Through AS-i |
| 15 | Mounting | Field/machine |
| 16 | Housing | UniversalModule |
| 17 | Wiring | Distributed sensor wiring |
| 18 | Diagnostics | Channel/network monitoring |
| 19 | Maintenance | Sensor/connector inspection |
| 20 | Environmental Design | Industrial field |
| 21 | Application | Temperature monitoring |
| 22 | Channel Count | Four |
| 23 | Field Protection | IP65 |
| 24 | Configuration | AS-i analog system |
| 25 | System Role | Distributed Pt100 temperature input |
