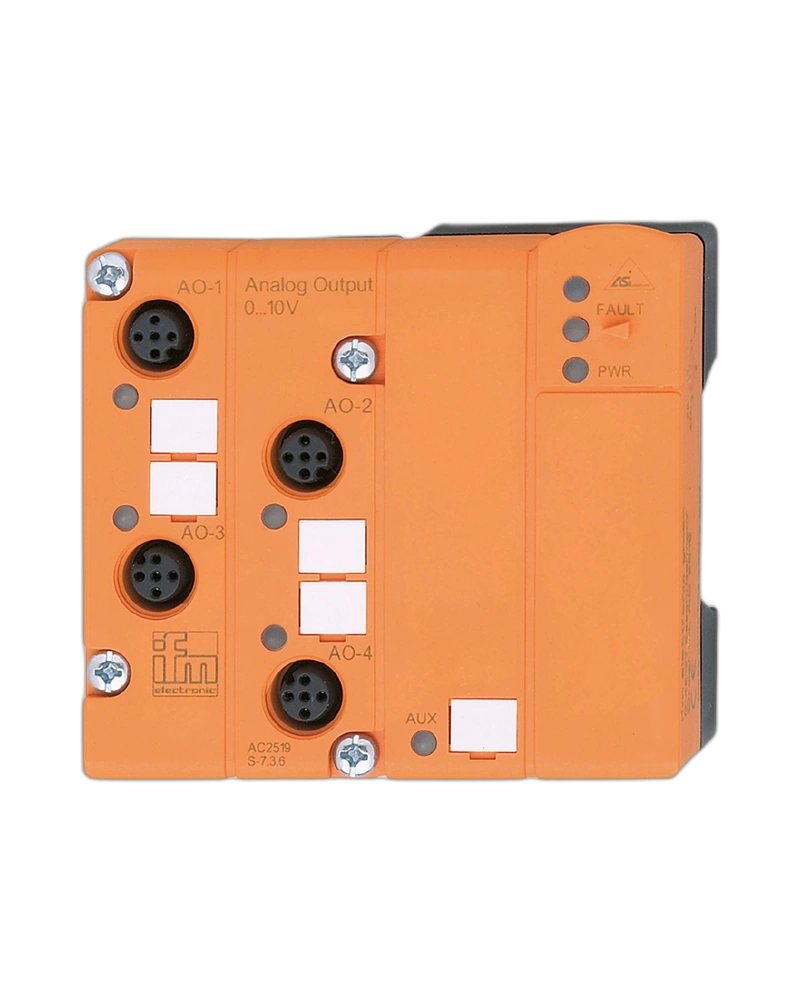

The AC2519 is a four-channel voltage analog output module for AS-Interface automation systems. It provides continuous output signals for compatible industrial control devices. The ClassicLine90 construction supports decentralized field installation. M12 connections provide a practical industrial interface, while IP67 protection supports field use. The module enables PLC-controlled analog output functions close to the machine process.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Four voltage-based analog outputs allow continuous control of compatible devices. The module receives process values through the AS-i network. Its field-oriented design supports installation near controlled equipment. M12 connections simplify structured analog wiring. The module is suitable for industrial systems requiring multiple voltage outputs.
Voltage analog outputs can provide continuously variable control information. They can be used with compatible drives, controllers, valves, or instrumentation. Four channels allow multiple devices to be controlled from one distributed module. PLC logic determines the output values. The architecture supports flexible decentralized process control.
Output status should be monitored during normal operation and commissioning. Connected devices should be checked if the expected control response is absent. M12 connectors should be inspected for secure connections. Analog cables should be checked for damage and interference. Regular inspection helps maintain stable control signals.
Position the module close to the connected analog devices. Connect each channel according to the machine documentation. Configure analog scaling within the PLC application. Test all channels before normal operation. Maintain clear wiring and channel identification.
4 analog outputs
Voltage-output configuration
ClassicLine90 design
M12 connections
IP67 protection
AS-Interface networking
Continuous analog control
Decentralized architecture
PLC integration
Industrial field installation
Drive control
Process regulation
Valve interfaces
Flow control
Pressure control
Industrial instrumentation
Production machinery
Automated process systems
Factory automation
Distributed analog control
| No. | Specification | Details |
|---|---|---|
| 1 | Product Code | AC2519 |
| 2 | Product Family | AS-Interface ClassicLine |
| 3 | Product Type | Analog output module |
| 4 | Analog Outputs | 4 |
| 5 | Signal Type | Voltage analog |
| 6 | Connector | M12 |
| 7 | Protection Rating | IP67 |
| 8 | Network | AS-Interface |
| 9 | Installation | Decentralized |
| 10 | Output Function | Continuous analog control |
| 11 | Actuator Interface | Analog voltage |
| 12 | Process Data | Analog output values |
| 13 | Addressing | AS-i |
| 14 | Master | AS-i master |
| 15 | PLC Integration | Through AS-i |
| 16 | Mounting | Field/machine |
| 17 | Housing | ClassicLine90 |
| 18 | Diagnostics | Output/network monitoring |
| 19 | Maintenance | Load/connector inspection |
| 20 | Environmental Design | Industrial field |
| 21 | Application | Process automation |
| 22 | Channel Count | Four |
| 23 | Field Interface | M12 |
| 24 | Configuration | AS-i analog system |
| 25 | System Role | Distributed analog output |
