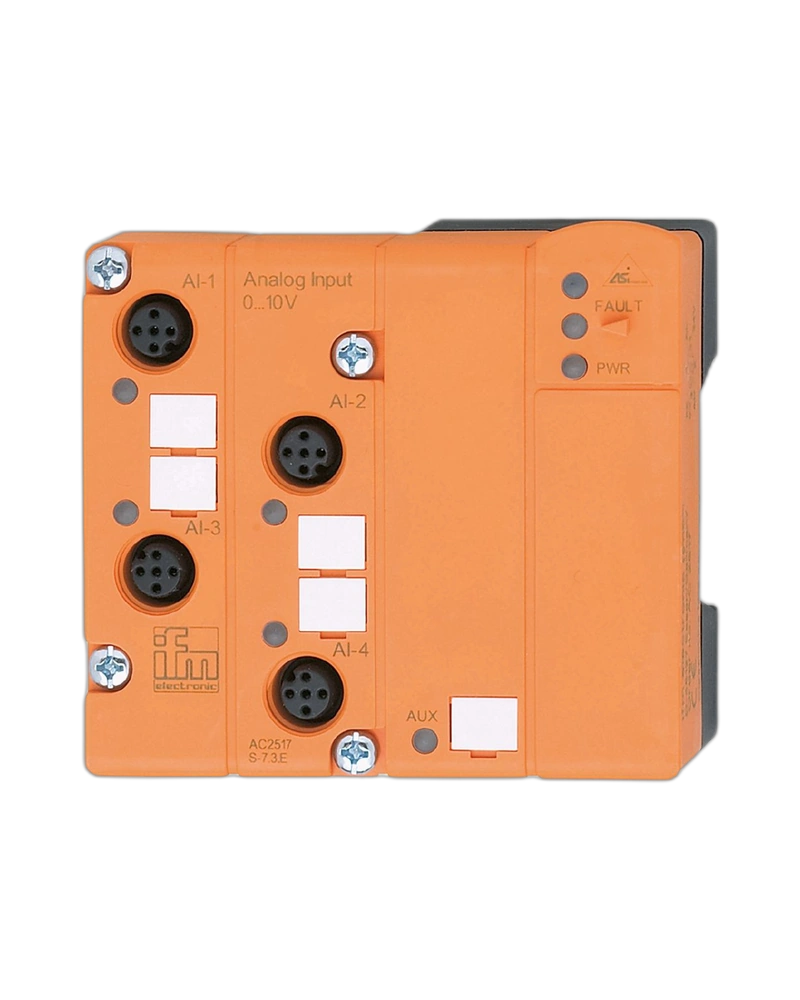

The AC2517 is a four-channel analog input module designed for voltage-based analog signals. Its ClassicLine90 format supports decentralized industrial installation. M12 connections provide an organized field interface for compatible sensors. IP67 protection makes the module suitable for demanding field environments. AS-Interface transfers measured process information to the automation controller.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Four voltage-type analog inputs provide continuous measurement acquisition. The module can collect process signals from compatible voltage-output sensors. Its decentralized design allows installation near the measurement point. M12 connections support industrial field wiring. The module provides an interface between analog sensors and AS-i-based control systems.
Voltage-based sensors can provide continuous measurements for process variables. The four input channels allow multiple sensors to be connected at one location. Process values can be transferred through the AS-i network. The PLC can use these values for monitoring, control, alarms, and data processing. The module supports distributed analog automation.
Analog signal quality should be monitored through the automation controller. Sensor wiring should be inspected for loose connections or electrical interference. M12 connectors should be kept secure and clean. Abnormal readings should be investigated at both sensor and module level. Preventive checks help maintain accurate measurement data.
Install the module near the compatible analog sensors. Use suitable M12 wiring and follow the machine signal plan. Configure the analog input channels within the AS-i system. Validate PLC scaling and engineering units during commissioning. Proper documentation simplifies future service work.
4 analog inputs
Voltage-signal configuration
ClassicLine90 housing
M12 interface
IP67 protection
AS-Interface communication
Continuous measurement
Decentralized installation
PLC integration
Industrial analog sensing
Process measurement
Level monitoring
Pressure sensing
Temperature transmitter interfaces
Machine monitoring
Industrial instrumentation
Production lines
Fluid processing
Factory automation
Decentralized measurement systems
| No. | Specification | Details |
|---|---|---|
| 1 | Product Code | AC2517 |
| 2 | Product Family | AS-Interface ClassicLine |
| 3 | Product Type | Analog input module |
| 4 | Analog Inputs | 4 |
| 5 | Signal Type | Voltage analog |
| 6 | Connector | M12 |
| 7 | Protection Rating | IP67 |
| 8 | Network | AS-Interface |
| 9 | Installation | Decentralized |
| 10 | Measurement | Continuous analog |
| 11 | Sensor Interface | Voltage analog |
| 12 | Process Data | Analog values |
| 13 | Addressing | AS-i |
| 14 | Master | AS-i master |
| 15 | PLC Integration | Through AS-i |
| 16 | Mounting | Field/machine |
| 17 | Housing | ClassicLine90 |
| 18 | Diagnostics | Analog/network status |
| 19 | Maintenance | Sensor and connector inspection |
| 20 | Environmental Design | Industrial field |
| 21 | Application | Process automation |
| 22 | Channel Count | Four |
| 23 | Field Interface | M12 |
| 24 | Configuration | AS-i analog system |
| 25 | System Role | Distributed voltage input |
