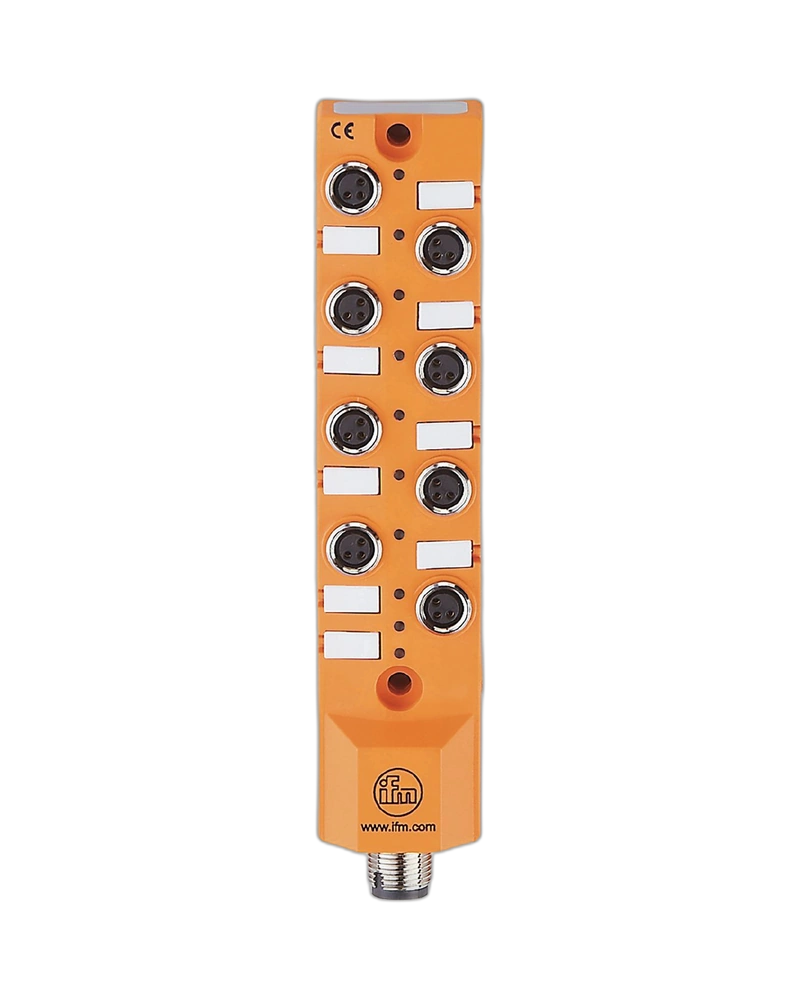

The AC2490 is a CompactM8 AS-Interface module providing four digital inputs and four digital outputs. It is designed for distributed machine control where both monitoring and switching functions are required. The compact M8 connection format supports space-efficient field installation. AS-Interface provides communication with the automation controller. The module is suitable for compact industrial machines and automated production systems.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Four inputs provide digital sensor acquisition while four outputs provide actuator control. This combination allows a single field module to manage both sides of a machine control point. The CompactM8 construction supports organized wiring in compact spaces. AS-i enables centralized PLC control with decentralized I/O. It is suitable for modular automation architectures.
The module can monitor sensors and operate connected actuators simultaneously. Input signals may represent machine status, position, or presence. Output signals can be used for compatible switching devices. The field module can be installed close to the process equipment. This reduces the need for long control cables.
Input and output states can be observed through the AS-i system. Field connectors should be checked during maintenance. Connected loads should be inspected if output behavior is abnormal. AS-i network diagnostics can help identify communication issues. Regular channel testing supports dependable machine operation.
The module should be positioned close to the sensor and actuator group. M8 connections should be installed according to the machine wiring plan. Configure the AS-i address through the network master. Test all channels during commissioning. Clear identification of each channel improves maintenance.
4 digital inputs
4 digital outputs
CompactM8 construction
AS-Interface communication
Distributed I/O
Sensor and actuator interface
Compact installation
PLC integration
Reduced wiring
Industrial field connectivity
Assembly machines
Packaging equipment
Conveyor systems
Production lines
Material handling
Machine automation
Sensor/actuator stations
Industrial control
Factory automation
Automated work cells
| No. | Specification | Details |
|---|---|---|
| 1 | Product Code | AC2490 |
| 2 | Product Family | AS-Interface CompactLine |
| 3 | Product Type | Digital I/O module |
| 4 | Digital Inputs | 4 |
| 5 | Digital Outputs | 4 |
| 6 | Connector | M8 |
| 7 | Network | AS-Interface |
| 8 | Input Function | Sensor acquisition |
| 9 | Output Function | Actuator control |
| 10 | Signal Type | Digital |
| 11 | Process Data | Digital I/O |
| 12 | Installation | Decentralized |
| 13 | Addressing | AS-i |
| 14 | Master | AS-i master |
| 15 | PLC Integration | AS-i network |
| 16 | Mounting | Field/machine |
| 17 | Wiring | Distributed |
| 18 | Housing | CompactLine |
| 19 | Diagnostics | Channel/network monitoring |
| 20 | Maintenance | Wiring/load inspection |
| 21 | Application | Industrial automation |
| 22 | Channel Capacity | 8 digital channels |
| 23 | Field Interface | M8 |
| 24 | Configuration | AS-i system |
| 25 | System Role | Distributed digital I/O |
