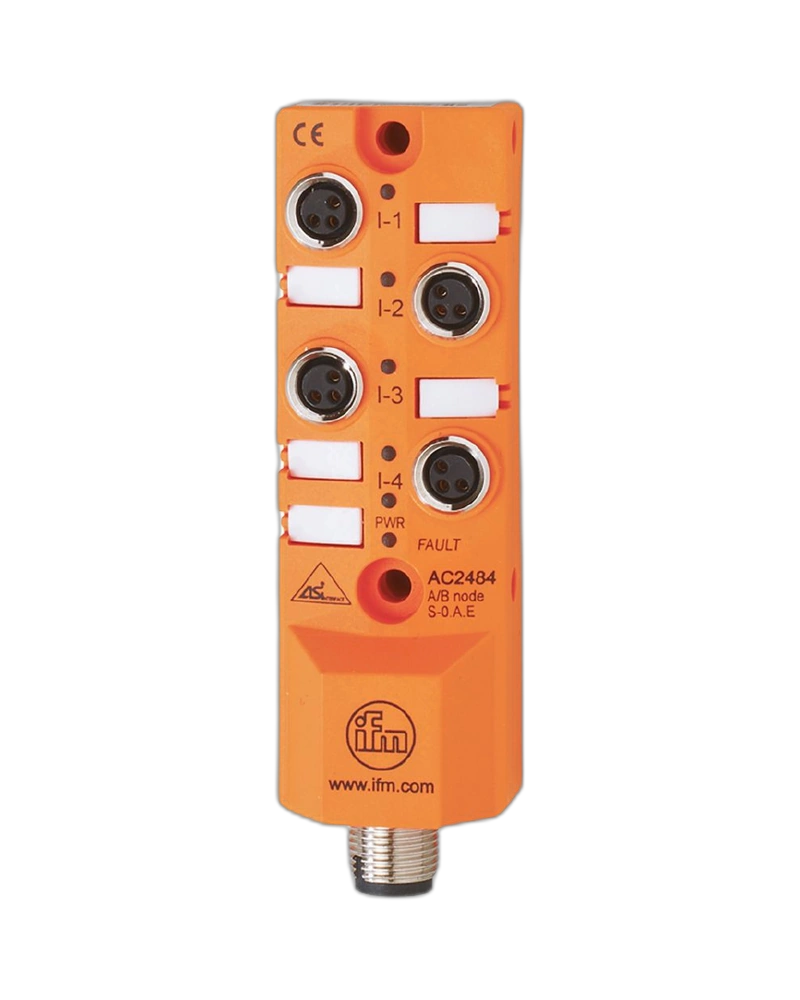

The AC2484 is a four-channel digital input module for AS-Interface automation systems. Its CompactM8 format provides a compact solution for distributed sensor connections. Four digital inputs allow multiple field signals to be collected through one module. The module communicates with the control system through AS-Interface. It is suited to compact machine designs where space and wiring efficiency are important.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The four input channels can collect digital signals from sensors and switching devices. The CompactM8 design provides a small field connection footprint. AS-i communication allows sensor data to be transferred to the automation controller. The module can be installed near the monitored devices. It supports decentralized machine architecture and simplified wiring.
The module is suitable for proximity sensors, limit switches, position sensors, and other digital devices. Multiple sensor signals can be concentrated at one field location. This reduces the need for separate long sensor cables to the control cabinet. The AS-i master handles communication with the PLC. The module therefore acts as a distributed sensor interface.
Sensor channel status can be observed through the control system. Incorrect signals should be investigated through the sensor and connector path. M8 connections should be inspected for proper seating. Cable insulation and routing should be checked during maintenance. Periodic functional testing helps maintain reliable signal acquisition.
Mount the module close to the sensor group whenever possible. Use the appropriate M8 field connections for sensor wiring. Configure the AS-i address according to the network design. Verify channel assignments during commissioning. Proper documentation simplifies troubleshooting.
4 digital inputs
CompactM8 construction
AS-Interface communication
Distributed sensor interface
Compact installation
Binary signal acquisition
Industrial field connection
PLC integration
Reduced wiring
Machine-level installation
Proximity sensing
Position detection
Conveyor monitoring
Assembly automation
Packaging equipment
Machine status monitoring
Production lines
Material handling
Industrial machinery
Factory automation
| No. | Specification | Details |
|---|---|---|
| 1 | Product Code | AC2484 |
| 2 | Product Family | AS-Interface CompactLine |
| 3 | Product Type | Digital input module |
| 4 | Digital Inputs | 4 |
| 5 | Digital Outputs | Not included |
| 6 | Connector | M8 |
| 7 | Network | AS-Interface |
| 8 | Input Type | Digital |
| 9 | Sensor Interface | Digital |
| 10 | Process Data | Input status |
| 11 | Installation | Decentralized |
| 12 | Addressing | AS-i |
| 13 | Master | AS-i master |
| 14 | PLC Integration | AS-i network |
| 15 | Mounting | Field/machine |
| 16 | Wiring | Distributed sensor wiring |
| 17 | Signal Type | Binary |
| 18 | Housing | CompactLine |
| 19 | Diagnostics | Input/network status |
| 20 | Maintenance | Sensor inspection |
| 21 | Application | Industrial automation |
| 22 | Channel Count | Four |
| 23 | Field Interface | M8 |
| 24 | Configuration | AS-i system |
| 25 | System Role | Digital input acquisition |
