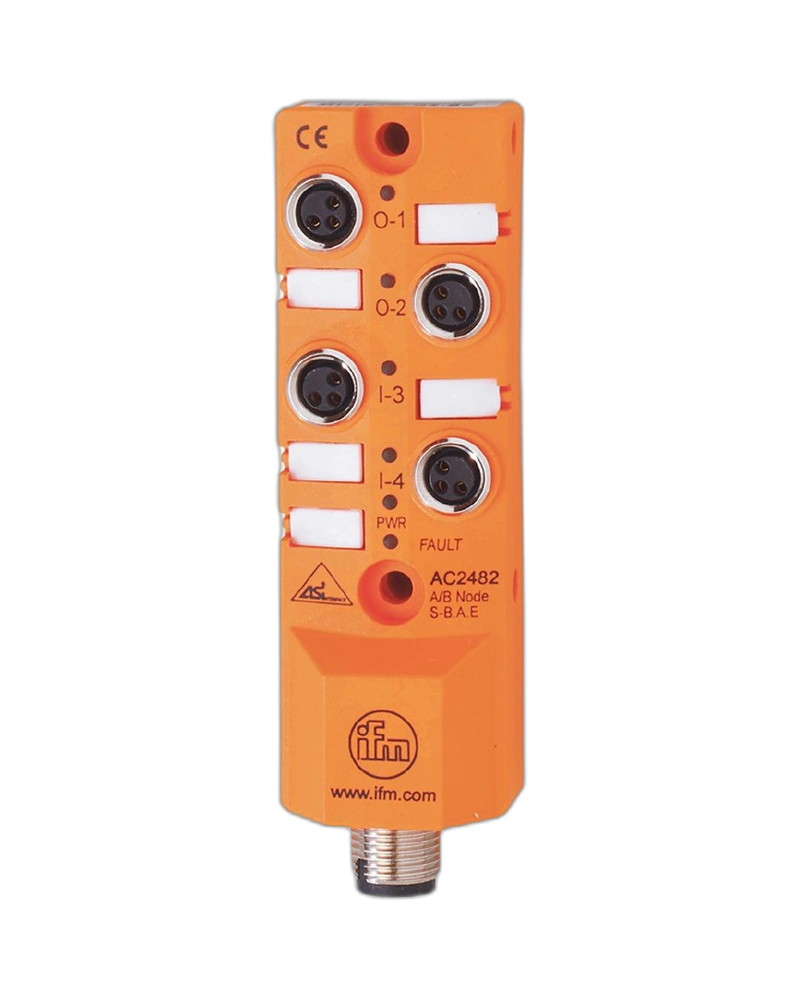

The AC2482 is a compact AS-Interface module providing two digital inputs and two digital outputs. Its CompactM8 format is suitable for applications requiring compact field-level connections. The inputs acquire signals from sensors while the outputs control compatible digital loads. AS-Interface provides communication with the automation control system. The module is suitable for compact machines and decentralized automation stations.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The module combines four digital channels in a compact field device. Two inputs support sensor monitoring and machine feedback. Two outputs provide switching functions for connected actuators. The M8 connection concept is useful where compact connections are preferred. Its decentralized architecture helps reduce wiring to the main control cabinet.
The AC2482 can be installed near sensors and actuators within the machine. Digital signals are transferred through the AS-i network. The module is suitable for small automation stations with limited channel requirements. Compact connections help maintain clean field wiring. It can be integrated into larger distributed AS-i architectures.
Channel status can be monitored through the AS-i master. Sensor and actuator connections should be inspected during troubleshooting. M8 connectors should remain clean and securely connected. Output devices should be checked if commanded switching does not occur. Periodic inspection supports stable machine operation.
Use the module near the devices being controlled or monitored. Assign the AS-i address according to the system configuration. Connect input and output devices according to the machine documentation. Commission each channel individually. Proper labeling improves maintenance efficiency.
2 digital inputs
2 digital outputs
CompactM8 format
AS-Interface communication
Distributed I/O
Sensor monitoring
Actuator control
Compact field installation
PLC integration
Reduced wiring
Small automation machines
Sensor monitoring
Actuator switching
Assembly equipment
Conveyor sections
Packaging machines
Machine status feedback
Material handling
Production equipment
Factory automation
| No. | Specification | Details |
|---|---|---|
| 1 | Product Code | AC2482 |
| 2 | Product Family | AS-Interface CompactLine |
| 3 | Product Type | Digital I/O module |
| 4 | Digital Inputs | 2 |
| 5 | Digital Outputs | 2 |
| 6 | Connector | M8 |
| 7 | Network | AS-Interface |
| 8 | Signal Type | Digital |
| 9 | Input Function | Sensor acquisition |
| 10 | Output Function | Actuator switching |
| 11 | Installation | Decentralized |
| 12 | Sensor Interface | Digital |
| 13 | Actuator Interface | Digital |
| 14 | Process Data | Digital I/O |
| 15 | Addressing | AS-i |
| 16 | Master | AS-i master |
| 17 | PLC Integration | Through AS-i |
| 18 | Mounting | Machine/field |
| 19 | Wiring | Distributed |
| 20 | Diagnostics | Channel monitoring |
| 21 | Maintenance | Connector inspection |
| 22 | Application | Factory automation |
| 23 | Housing | Compact field enclosure |
| 24 | Channel Capacity | 4 digital channels |
| 25 | System Role | Distributed digital I/O |
