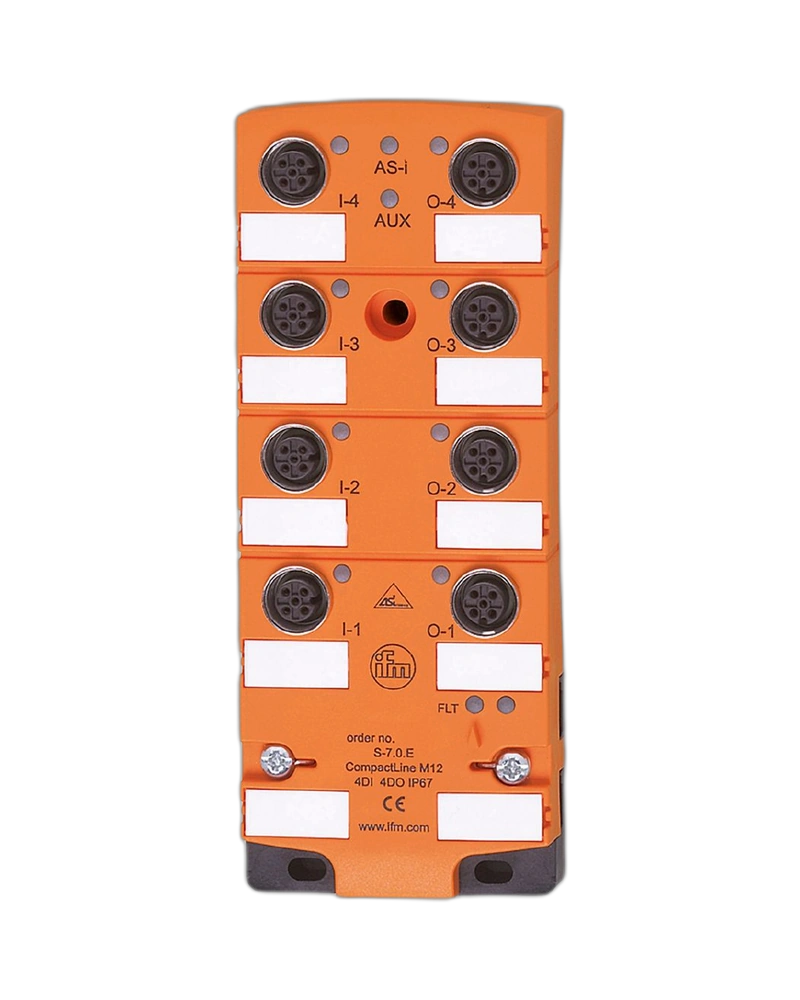

The AC2476 provides four digital inputs and four digital outputs in a CompactLine M12 format. It is designed for decentralized machine control and field-level signal exchange. The input channels collect information from sensors while the output channels control suitable actuating devices. AS-Interface provides communication between the module and the automation controller. Its compact architecture helps simplify machine wiring and installation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The module combines digital signal acquisition and actuator control in one field device. Four inputs can monitor machine conditions and sensor signals. Four outputs can operate connected digital loads and control devices. The M12 connection concept supports structured field wiring. The module is suited to applications requiring balanced input and output capacity.
The AC2476 can be installed close to the machine components it controls. Sensor signals can be collected locally without routing every cable to the control cabinet. Output commands can be transmitted from the PLC through the AS-i master. This creates a distributed control architecture. It is suitable for modular production equipment and automated machinery.
Input and output states can be monitored through the automation system. Field wiring should be checked whenever unexpected channel behavior occurs. Connectors should be inspected for secure seating and contamination. Output-connected loads should be checked for proper operation. Routine maintenance helps preserve communication and switching reliability.
The CompactLine module should be installed in a suitable field location. M12 connections should be assigned according to the machine wiring plan. AS-i addressing should correspond with the PLC configuration. Sensors and actuators should be checked during commissioning. Proper cable management improves long-term installation reliability.
4 digital inputs
4 digital outputs
AS-Interface networking
CompactLine M12 design
Distributed I/O
Sensor monitoring
Actuator control
Compact field installation
PLC integration
Reduced cabinet wiring
Machine automation
Packaging equipment
Conveyor systems
Assembly lines
Material handling
Industrial production
Sensor/actuator stations
Automated work cells
Process equipment
Factory automation
| No. | Specification | Details |
|---|---|---|
| 1 | Product Code | AC2476 |
| 2 | Product Family | AS-Interface CompactLine |
| 3 | Product Type | Digital I/O module |
| 4 | Digital Inputs | 4 |
| 5 | Digital Outputs | 4 |
| 6 | Input Function | Digital signal acquisition |
| 7 | Output Function | Digital switching |
| 8 | Network | AS-Interface |
| 9 | Connector | M12 |
| 10 | Installation | Distributed |
| 11 | Sensor Interface | Digital |
| 12 | Actuator Interface | Digital |
| 13 | Process Data | Digital I/O |
| 14 | Addressing | AS-i |
| 15 | Master | AS-i master |
| 16 | PLC Integration | Via AS-i |
| 17 | Wiring | Field-level |
| 18 | Mounting | Machine/field |
| 19 | Housing | CompactLine |
| 20 | Diagnostics | Channel/network status |
| 21 | Maintenance | Wiring inspection |
| 22 | Application | Factory automation |
| 23 | Signal Type | Binary |
| 24 | Configuration | AS-i network |
| 25 | System Role | Distributed digital I/O |
