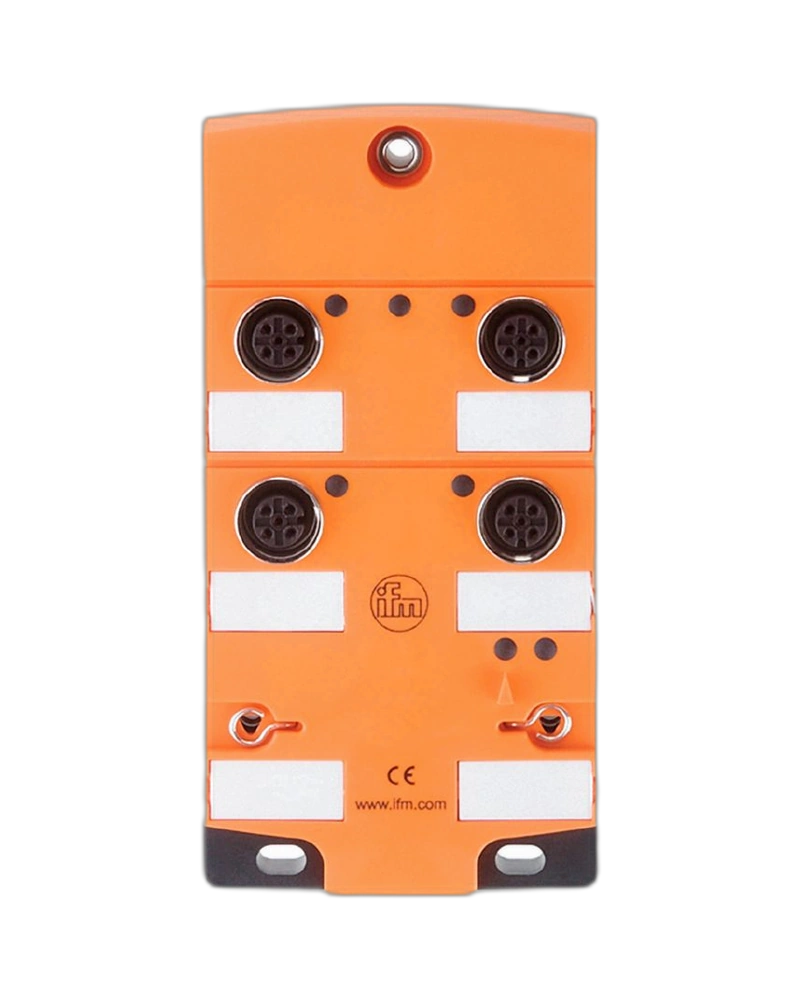

The AC2474 is a compact AS-Interface digital input module with four input channels. It is designed for collecting binary signals from sensors and switching devices in industrial automation systems. The CompactLine M12 design supports organized field-level connections. AS-Interface communication provides efficient data exchange with the automation controller. The module is suitable for decentralized sensor acquisition applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The module provides four digital inputs for monitoring field devices. It can collect switching information from proximity sensors, limit switches, push buttons, and other digital devices. Its CompactLine design supports installation near the machine process. AS-i communication reduces the amount of individual wiring required to the control cabinet. The module provides a practical interface between field sensors and PLC systems.
Digital sensors can be connected directly through the field connection arrangement. The four channels allow multiple machine signals to be handled by one distributed module. Sensor status can be transmitted through the AS-i network. The compact architecture supports installation in space-constrained machine areas. This makes the module useful for decentralized signal collection.
Input status can be monitored from the connected automation controller. Sensor faults can be investigated by checking signal status and field wiring. Connector seating should be inspected during preventive maintenance. Cable routing should be checked for mechanical damage or excessive stress. Regular inspection helps maintain stable signal acquisition.
The module can be mounted close to the sensors being monitored. M12 connections provide a practical interface for industrial field wiring. Sensor assignments should be documented during machine commissioning. AS-i addressing should be coordinated with the master configuration. Correct installation supports reliable communication and signal acquisition.
4 digital inputs
AS-Interface communication
CompactLine architecture
M12 connection concept
Decentralized sensor acquisition
Binary signal processing
Industrial field installation
PLC integration through AS-i
Reduced point-to-point wiring
Compact construction
Proximity sensor monitoring
Limit switch monitoring
Assembly equipment
Conveyor automation
Machine status detection
Packaging lines
Production equipment
Material handling
Factory automation
Sensor distribution systems
| No. | Specification | Details |
|---|---|---|
| 1 | Product Code | AC2474 |
| 2 | Product Family | AS-Interface CompactLine |
| 3 | Product Type | Digital input module |
| 4 | Digital Inputs | 4 |
| 5 | Digital Outputs | Not provided by this model |
| 6 | Input Function | Digital sensing |
| 7 | Signal Type | Binary |
| 8 | Network | AS-Interface |
| 9 | Connector | M12 |
| 10 | Installation | Decentralized |
| 11 | Sensor Interface | Digital |
| 12 | Process Data | Digital input status |
| 13 | Addressing | AS-i |
| 14 | Master Interface | AS-i master |
| 15 | PLC Communication | Through AS-i master |
| 16 | Mounting | Field/machine |
| 17 | Wiring | Distributed sensor wiring |
| 18 | Housing | CompactLine enclosure |
| 19 | Diagnostics | Input/network monitoring |
| 20 | Maintenance | Sensor and connector inspection |
| 21 | Application | Industrial automation |
| 22 | Configuration | AS-i network configuration |
| 23 | Field Connection | M12-based |
| 24 | Signal Acquisition | Multi-channel |
| 25 | System Role | Distributed digital input |
