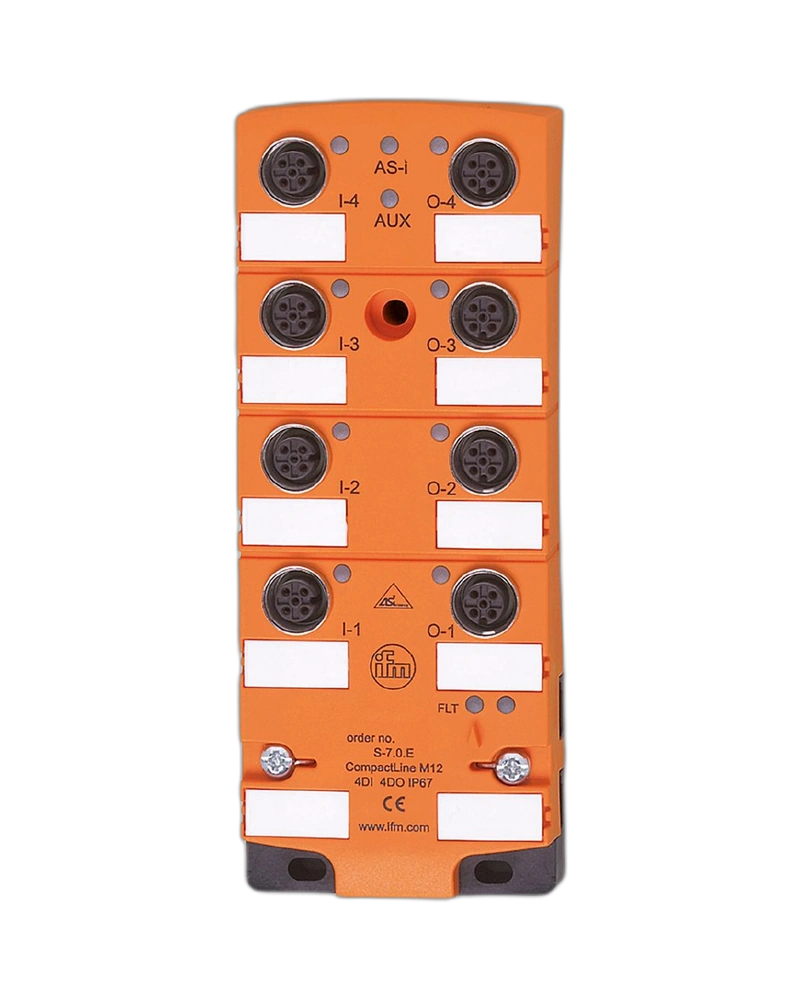

The AC2471 is an AS-Interface CompactLine module designed for distributed digital I/O applications. It provides four digital inputs and four digital outputs for machine-level signal exchange. The CompactM12 construction supports organized sensor and actuator connections. AS-Interface communication allows the module to exchange process data with the automation controller. It is suitable for compact industrial machines requiring multiple digital channels.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The module expands an AS-i network with four digital input channels and four digital output channels. Inputs can collect signals from sensors, switches, and machine feedback devices. Outputs can control suitable actuators, indicators, relays, or interface devices. The M12-based field connection supports practical machine wiring. Its decentralized design reduces the need for extensive point-to-point wiring.
The four input channels provide digital status acquisition from connected field devices. The four output channels provide controller-driven switching functions for connected loads. AS-i transfers process information between the field module and automation controller. The CompactLine format allows installation close to the machine process. This architecture improves wiring efficiency and modularity.
Channel status can be monitored through the AS-i controller and diagnostic functions. Incorrect input states can be investigated by checking connected sensors and wiring. Output problems should be checked at the actuator, connector, and field wiring levels. M12 connections should remain firmly secured during machine operation. Periodic inspection supports reliable field communication.
The module is suitable for decentralized installation near sensors and actuators. M12 connections simplify organized field wiring. Inputs should be connected according to the required sensor arrangement. Outputs should be matched with compatible machine loads. AS-i configuration and addressing should be completed before commissioning.
4 digital inputs
4 digital outputs
AS-Interface communication
CompactM12 construction
Distributed I/O architecture
Sensor signal acquisition
Actuator control
M12 field connections
Reduced control cabinet wiring
PLC integration
Factory automation
Machine control
Assembly machines
Conveyor systems
Packaging machinery
Sensor monitoring
Actuator switching
Production-line equipment
Material handling
Industrial control panels
| No. | Specification | Details |
|---|---|---|
| 1 | Product Code | AC2471 |
| 2 | Product Family | AS-Interface CompactLine |
| 3 | Product Type | CompactM12 digital I/O module |
| 4 | Digital Inputs | 4 |
| 5 | Digital Outputs | 4 |
| 6 | Input Function | Digital signal acquisition |
| 7 | Output Function | Digital actuator control |
| 8 | Network | AS-Interface |
| 9 | Connector Family | M12 |
| 10 | Installation | Decentralized |
| 11 | Sensor Interface | Digital |
| 12 | Actuator Interface | Digital |
| 13 | Process Data | Digital I/O |
| 14 | Addressing | AS-i addressing |
| 15 | Master Compatibility | AS-i master |
| 16 | PLC Integration | Via AS-i master |
| 17 | Wiring Concept | Distributed field wiring |
| 18 | Mounting | Field/machine mounting |
| 19 | Housing | Compact industrial enclosure |
| 20 | Diagnostics | Network/channel monitoring |
| 21 | Maintenance | Connector and wiring inspection |
| 22 | Application | Industrial automation |
| 23 | Signal Type | Binary |
| 24 | Configuration | AS-i system configuration |
| 25 | Integration | Sensors and actuators |
