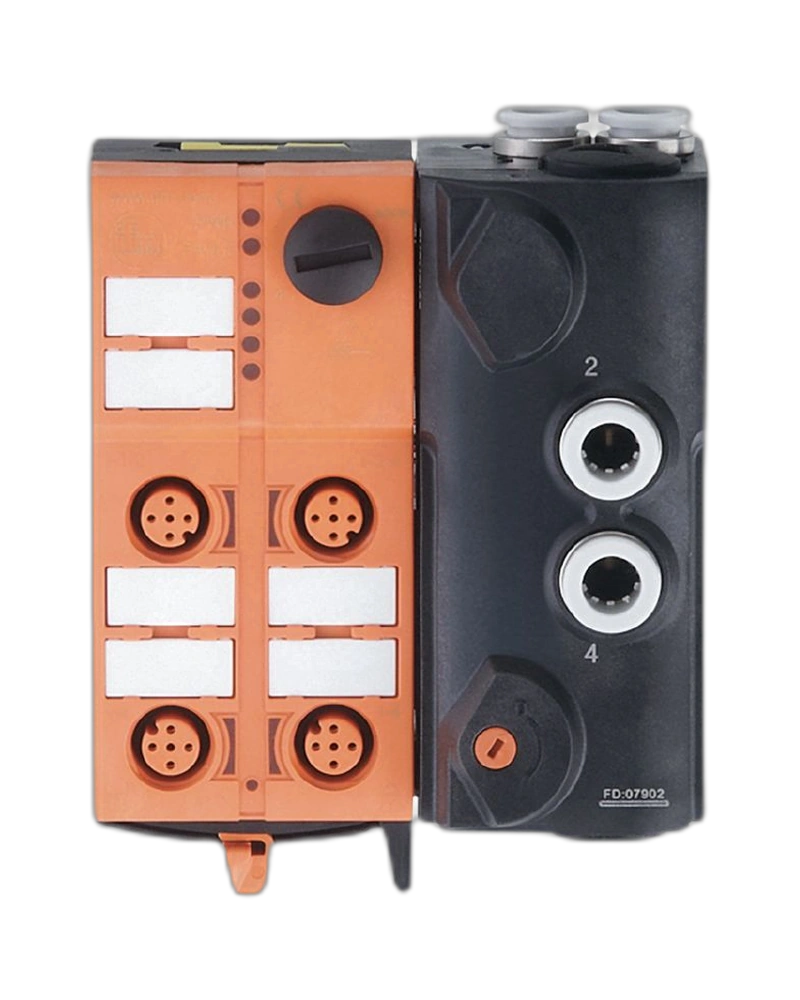

The AC246A AS-Interface AirBox is a compact industrial automation module designed for efficient integration of pneumatic and digital field devices into an AS-Interface network. Its AirBox configuration supports 5/2 pneumatic valve applications with 2 digital input functions and II 3D hazardous-area suitability. The compact construction helps reduce panel and machine installation space while maintaining convenient field connectivity. It is suitable for decentralized automation architectures where reliable signal transmission and pneumatic control are required. The module is designed for practical machine automation, material handling and process-control applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The AC2464A provides an integrated solution for pneumatic valve control and digital signal handling. Its 5/2 valve configuration is suitable for controlling double-acting pneumatic actuators. The two digital inputs can be used for monitoring sensors or actuator feedback. AS-Interface enables communication and power distribution through the field network. The AirBox format supports decentralized machine architecture and simplified installation.
The module combines pneumatic and electrical functions in a field-mounted automation component. Digital inputs allow machine status information to be transferred to the AS-i control system. The pneumatic section provides directional control for suitable pneumatic circuits. Its compact construction helps place the module near the point of operation. This reduces conventional control wiring and improves machine-level organization.
The AS-i network provides the communication path for monitoring the connected module. Input status can be evaluated through the connected AS-i master and controller. Pneumatic connections should be inspected periodically for leakage and mechanical damage. Electrical connectors should remain clean, properly seated, and protected from contamination. Preventive inspection helps maintain stable pneumatic and communication performance.
The AirBox is intended for decentralized installation within industrial automation systems. Pneumatic tubing should be routed to avoid excessive bending and mechanical stress. Electrical and AS-i connections should be installed according to the machine architecture. Sensor wiring should be checked for correct assignment before commissioning. Proper mounting and cable routing improve long-term reliability.
5/2 pneumatic valve function
2 digital input channels
AS-Interface field communication
Decentralized field installation
Integrated pneumatic and electrical functionality
Compact AirBox construction
Suitable for pneumatic actuator control
Sensor feedback capability
Reduced cabinet wiring
Industrial automation integration
Pneumatic cylinder directional control
Machine automation systems
Factory assembly equipment
Material handling machinery
Packaging equipment
Process automation
Actuator feedback monitoring
Decentralized pneumatic stations
Production-line automation
Machine-building applications
| No. | Specification | Details |
|---|---|---|
| 1 | Product Code | AC2464A |
| 2 | Product Family | AS-Interface AirBox |
| 3 | Product Type | Pneumatic field module |
| 4 | Pneumatic Function | 5/2 valve |
| 5 | Digital Inputs | 2 |
| 6 | Input Type | Digital sensor input |
| 7 | Communication | AS-Interface |
| 8 | Installation Concept | Decentralized field installation |
| 9 | Pneumatic Application | Directional actuator control |
| 10 | Sensor Interface | Digital |
| 11 | Process Data | Input and valve-related data |
| 12 | Valve Control | Electrically controlled pneumatic function |
| 13 | Network Integration | AS-i master |
| 14 | Field Wiring | AS-i field connection |
| 15 | Feedback Function | Sensor status monitoring |
| 16 | Connector Concept | Industrial field connectors |
| 17 | Mounting | Machine/field installation |
| 18 | Housing | Industrial automation enclosure |
| 19 | Environmental Design | Industrial field environment |
| 20 | Maintenance | Pneumatic and electrical inspection |
| 21 | Diagnostics | AS-i communication diagnostics |
| 22 | Application Area | Factory automation |
| 23 | Protection Concept | Field-oriented construction |
| 24 | Configuration | AS-i system dependent |
| 25 | Integration | PLC-controlled automation systems |
