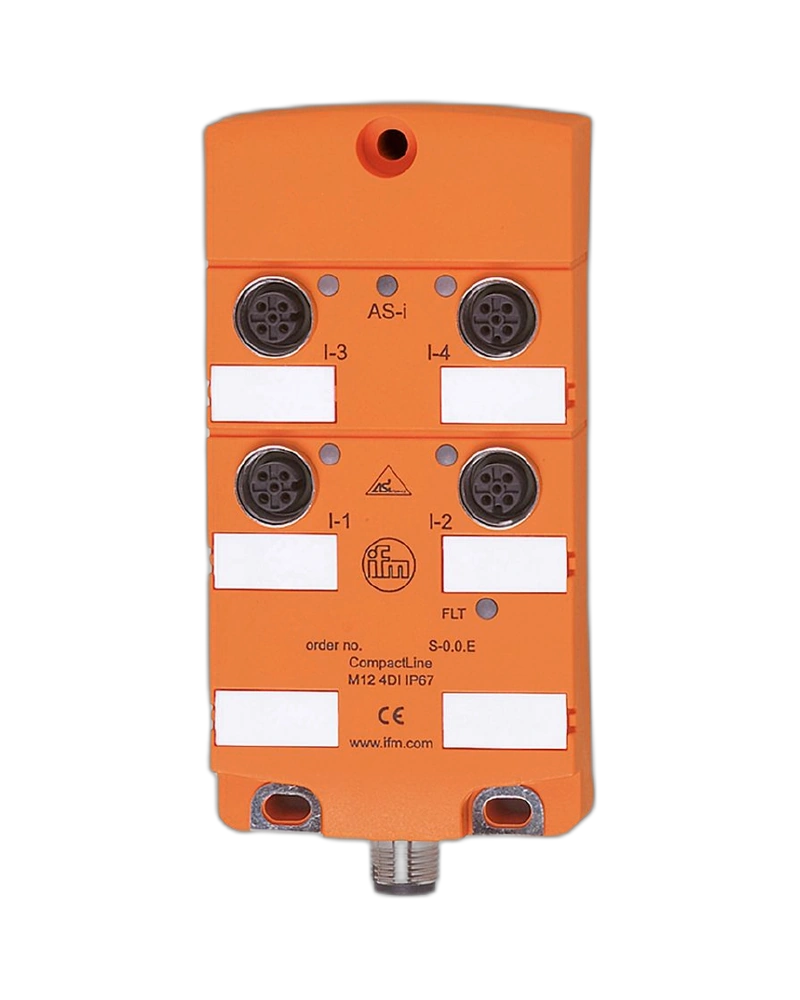

The AC2464 CompactLineM12 4DI module is designed for decentralized digital signal acquisition in AS-Interface automation systems. It provides four digital input channels for monitoring sensors and machine operating conditions. The compact M12 format supports practical installation close to the field devices. Its distributed architecture helps reduce wiring between machine sensors and centralized control equipment. The module is suitable for industrial automation systems requiring reliable and organized digital input connectivity.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The AC2464 provides four digital input channels for collecting discrete process signals. It connects field-level sensors to an AS-Interface network for communication with the automation controller. Its CompactLineM12 design supports installation directly within the machine environment. The module can reduce the amount of individual sensor wiring routed to the control cabinet. This makes it suitable for compact and modular machine architectures.
The four digital inputs can be used for monitoring machine states, sensor outputs, switching conditions, and position signals. Field signals are transferred through the AS-i communication network. Local I/O installation helps keep sensor cables short and organized. The module can therefore support cleaner machine wiring and simplified installation. It is suitable for applications where several digital sensors are located within one machine area.
The module operates within an AS-i network managed by a compatible master. Device addressing allows the module to be recognized and configured within the network. Input status can be monitored through the connected automation controller. M12 field connections provide practical access for maintenance and troubleshooting. Regular inspection of wiring, connectors, mounting, and communication status supports reliable operation.
4 digital inputs
CompactLineM12 construction
AS-Interface communication
M12 field connection
Distributed sensor interface
Digital signal monitoring
Compact industrial design
Reduced sensor wiring
AS-i master integration
Machine-level installation
Scalable field architecture
Industrial automation use
Sensor monitoring
Machine status detection
Position sensing
Assembly machines
Conveyor systems
Packaging equipment
Material handling
Production automation
Industrial machinery
Factory automation
Distributed sensor networks
Machine monitoring systems
| No. | Specification | Details |
|---|---|---|
| 1 | Product Code | AC2464 |
| 2 | Product Family | AS-Interface CompactLine |
| 3 | Product Type | CompactLineM12 input module |
| 4 | Digital Inputs | 4 DI |
| 5 | Network | AS-Interface |
| 6 | Connector | M12 |
| 7 | Communication | AS-i digital communication |
| 8 | Installation | Decentralized |
| 9 | Input Function | Digital sensor acquisition |
| 10 | Signal Type | Digital |
| 11 | Process Data | Digital input |
| 12 | Device Addressing | AS-i addressing |
| 13 | Master Compatibility | AS-i master |
| 14 | Parameterization | AS-i network configuration |
| 15 | Diagnostics | Device/network status |
| 16 | Power Concept | AS-i system supply |
| 17 | Field Interface | M12 |
| 18 | Housing | Compact industrial housing |
| 19 | Mounting | Field/machine mounting |
| 20 | Wiring Architecture | Distributed |
| 21 | Application Environment | Industrial automation |
| 22 | Sensor Interface | Digital field sensors |
| 23 | Maintenance | Field-level servicing |
| 24 | PLC Integration | Via AS-i master |
| 25 | Manufacturer | ifm electronic |
