Product Overview

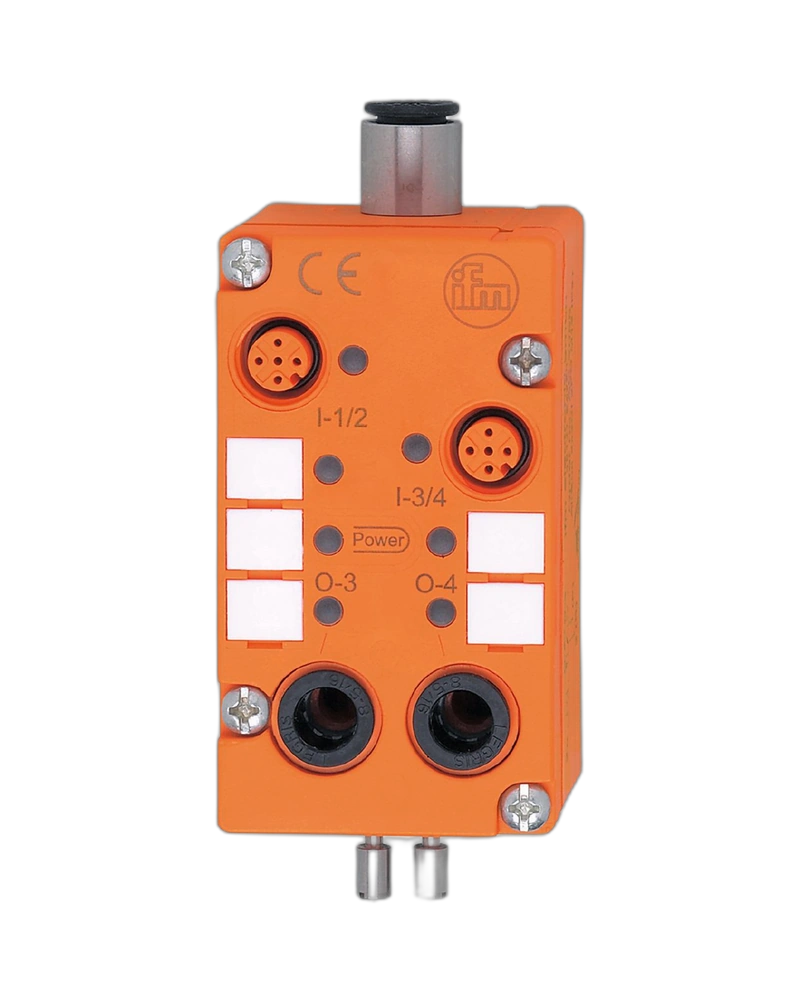

The AC2453 is designed for decentralized automation architectures where field devices need to be connected close to the machine process. Its CompactM12 format helps reduce cabinet wiring and simplifies installation around sensors and actuators. The module communicates through the AS-Interface network, allowing field-level signals to be transferred to the connected AS-i master. Its V4A-oriented configuration supports compact machine integration and organized field connectivity. The design is suitable for modular automation systems requiring scalable I/O distribution.

Connectivity & Integration

The module provides an AS-Interface connection for integration with compatible AS-i masters and automation controllers. Its M12-based field connection concept supports clean and service-friendly machine wiring. Distributed installation allows signal acquisition to take place closer to the process devices. This can reduce long parallel cable runs between field devices and control cabinets. The module can be incorporated into automated production equipment, handling systems, and machine control systems.

Diagnostics & Maintenance

The AS-i network architecture supports systematic device communication and network-level diagnostics. Correct device addressing and master configuration help maintain reliable signal exchange. Field wiring can be checked through the associated connectors and installation points. The compact construction provides convenient access during commissioning and maintenance activities. Periodic inspection of connectors, cable routing, mechanical mounting, and network communication helps maintain long-term operating reliability.

Key Features

CompactM12 AS-Interface module
4-channel SB configuration
AS-Interface network connectivity
V4A-oriented industrial design
Decentralized field installation
Compact machine integration
M12-based field connection concept
Reduced control cabinet wiring
Suitable for distributed I/O architecture
Industrial automation communication
Efficient sensor and actuator integration
Service-friendly field installation

Applications

Machine automation systems
Conveyor and material handling equipment
Assembly and production lines
Packaging machinery
Industrial sensor networking
Decentralized I/O installations
Factory automation systems
Machine tool applications
Process equipment control
Automated handling systems
Production monitoring installations
Modular control architectures
