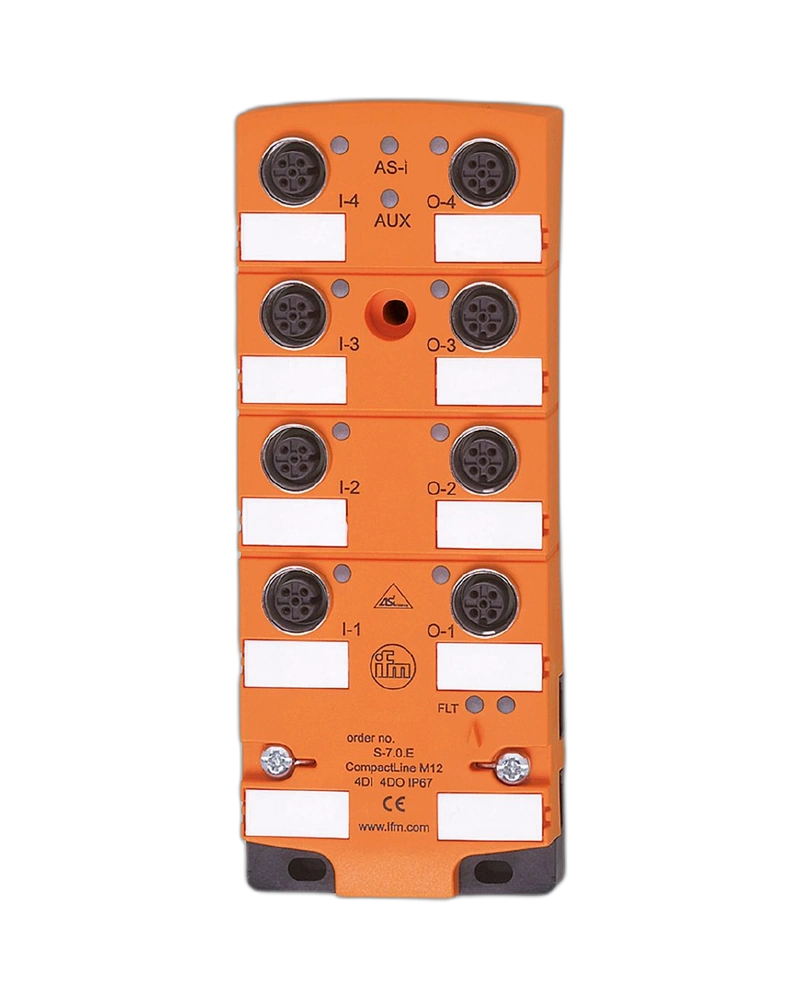

The AC2452 is a robust AS-Interface CompactLine module combining four digital inputs and four transistor outputs in a V4A stainless-steel housing. It provides both sensor acquisition and actuator control in one distributed field device. M12 connections simplify machine wiring and service operations. The stainless-steel construction is suitable for demanding industrial and washdown environments. It is an effective solution for high-density digital I/O in decentralized automation systems.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Product Overview
The AC2452 combines four digital PNP inputs with four digital outputs. It provides a complete eight-channel digital I/O interface for field-level automation. The V4A construction provides enhanced mechanical and environmental resistance. AS-i communication transfers process data between the module and controller. Its compact architecture helps reduce machine wiring complexity.
I/O Performance
Four digital inputs acquire sensor signals from the machine. Four transistor outputs provide control for connected actuators. The outputs can be used for compatible solenoid valves, indicators, relays, and other digital loads. The combination enables local control loops at the machine level. AS-i provides efficient communication with the PLC.
Mechanical Construction
The V4A stainless-steel housing provides durable field construction. M12 connectors provide standardized sensor and actuator connections. The module is designed for distributed installation. Its robust construction is beneficial for demanding production environments. The compact footprint supports high-density field I/O.
Diagnostics & Maintenance
Input and output states can be monitored through the AS-i controller. Channel-level testing simplifies commissioning. Network diagnostics help identify communication faults. M12 connections support quick replacement of connected devices. The robust enclosure reduces environmental maintenance requirements.
4 digital inputs
4 digital outputs
PNP transistor outputs
V4A stainless-steel housing
M12 connection
AS-Interface communication
CompactLine design
IP67 field protection
Distributed I/O
High-density eight-channel interface
PLC integration
Robust industrial construction
Food processing machinery
Packaging lines
Washdown equipment
Conveyor automation
Assembly systems
Material handling
Pneumatic actuator control
Production machinery
Factory automation
Robotic cells
Sensor and actuator networks
Industrial process equipment
| No. | Specification | Details |
|---|---|---|
| 1 | Product Code | AC2452 |
| 2 | Product Family | CompactLine |
| 3 | Product Type | Digital I/O module |
| 4 | Digital Inputs | 4 |
| 5 | Digital Outputs | 4 |
| 6 | Input Circuit | PNP |
| 7 | Output Circuit | PNP transistor |
| 8 | Network | AS-Interface |
| 9 | Connection | M12 |
| 10 | Housing | V4A stainless steel |
| 11 | Protection | IP67 |
| 12 | Installation | Distributed field |
| 13 | Sensor Supply | AS-i |
| 14 | Actuator Supply | Auxiliary supply architecture |
| 15 | Input Function | Digital sensing |
| 16 | Output Function | Digital actuation |
| 17 | Output Capability | High-current transistor outputs |
| 18 | Short-Circuit Protection | Output protection |
| 19 | AS-i Version | 2.11 / 3.0 |
| 20 | Addressing | AS-i device addressing |
| 21 | Process Data | Digital I/O |
| 22 | Diagnostics | Network/channel monitoring |
| 23 | Mounting | Field installation |
| 24 | Wiring | M12 field connections |
| 25 | Application | Industrial automation |
