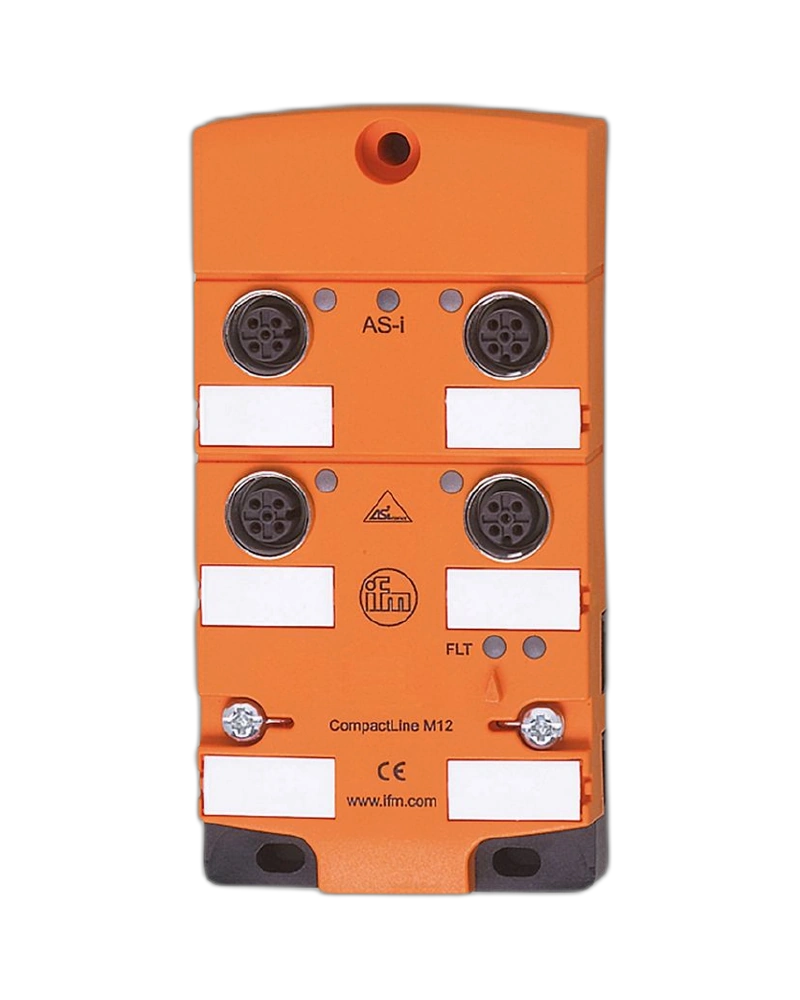

The AC2417 is an AS-Interface CompactLine digital output module providing four transistor outputs. It is designed for decentralized actuator control in industrial automation systems. The M12 interface supports convenient field connection and maintenance. Its IP67 construction allows installation close to machinery and actuators. The module is suitable for controlling valves, contactors, solenoids, indicators, and other compatible digital loads.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Product Overview
The AC2417 provides four digital outputs for actuator control. It communicates output commands through the AS-i network. Its distributed architecture allows installation near the controlled devices. The module helps reduce long control wiring runs. It is suitable for machines requiring several actuator channels in one compact field node.
Output Performance
Four transistor outputs provide digital switching capability. Outputs can control compatible industrial actuators and solenoid devices. The module supports high-current output applications within its rated limits. Short-circuit protection improves operational robustness. Output status is managed through the AS-i process data.
Installation & Integration
M12 connectors provide standardized actuator connections. The IP67 field design supports direct machine installation. The module can be placed close to pneumatic valves or other actuators. AS-i provides communication through the distributed field network. This architecture helps simplify machine wiring.
Diagnostics & Maintenance
Output states can be monitored through the controller. Network diagnostics provide visibility of communication status. Channel-level testing assists commissioning. M12 connectors simplify replacement and service. The rugged field housing reduces maintenance requirements.
4 digital outputs
PNP transistor outputs
M12 connection
AS-Interface communication
CompactLine design
IP67 field protection
Distributed actuator control
Short-circuit protection
High-current switching capability
PLC integration
AS-i addressing
Compact construction
Solenoid valves
Pneumatic actuators
Contactors
Signal lamps
Conveyor systems
Packaging machines
Assembly equipment
Material handling
Machine automation
Factory automation
Industrial actuator control
Production machinery
| No. | Specification | Details |
|---|---|---|
| 1 | Product Code | AC2417 |
| 2 | Product Type | Digital output module |
| 3 | Outputs | 4 |
| 4 | Output Circuit | PNP transistor |
| 5 | Network | AS-Interface |
| 6 | AS-i Profile | S-8.0.F |
| 7 | Connection | M12 |
| 8 | Protection | IP67 |
| 9 | Installation | Field |
| 10 | Output Function | Actuator control |
| 11 | Output Current | Up to 2 A/channel class |
| 12 | Total Current | Up to 4 A class |
| 13 | Short-Circuit Protection | Yes |
| 14 | Process Data | Digital output |
| 15 | Addressing | AS-i |
| 16 | Communication | Cyclic |
| 17 | Controller | AS-i master |
| 18 | Actuator Interface | M12 |
| 19 | Mounting | Distributed |
| 20 | Housing | Compact industrial |
| 21 | Diagnostics | Network status |
| 22 | Maintenance | Channel testing |
| 23 | Wiring | M12 |
| 24 | Application | Actuator control |
| 25 | Industrial Use | Factory automation |
