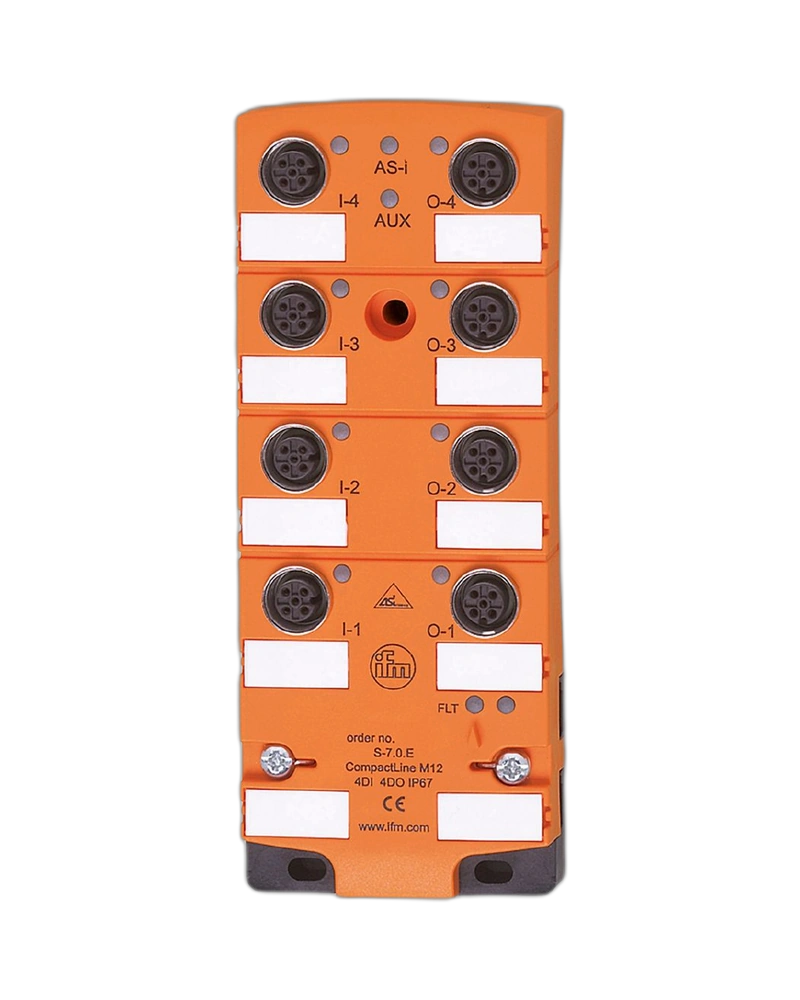

The AC2412 is a compact AS-Interface digital I/O module providing four digital inputs and four digital outputs. It provides a high-density interface for connecting sensors and actuators directly at the machine. M12 field connections simplify installation and maintenance. Its IP67 construction is suitable for distributed industrial environments. The module is well suited to automation systems requiring multiple digital channels in one field node.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Product Overview
The AC2412 combines four digital inputs and four digital outputs. It supports decentralized sensor and actuator integration through AS-i. The module helps reduce wiring between field devices and the main control cabinet. Its compact format supports efficient machine design. It is suitable for general industrial automation and production systems.
I/O Performance
Four digital inputs provide sensor acquisition. Four transistor outputs provide actuator control. The channels can be used for proximity sensors, switches, solenoids, relays, and compatible devices. AS-i communicates the process data to the PLC. The configuration provides a useful eight-channel digital field interface.
Installation & Integration
M12 connections provide organized field wiring. The IP67 design supports direct installation near machinery. The module can be positioned close to I/O devices to minimize cable lengths. AS-i networking simplifies overall machine wiring. Its compact footprint supports high-density automation layouts.
Diagnostics & Maintenance
Input and output states can be monitored from the controller. Network diagnostics help identify communication problems. Channel-level checks support commissioning and service. M12 connectors simplify device replacement. The robust enclosure reduces environmental maintenance requirements.
4 digital inputs
4 digital outputs
PNP digital architecture
M12 connection
AS-Interface communication
CompactLine design
IP67 protection
Distributed installation
High-density I/O
PLC integration
Sensor and actuator support
Industrial field construction
Packaging machines
Conveyor systems
Assembly lines
Material handling
Machine automation
Pneumatic equipment
Production systems
Robotic cells
Factory automation
Sensor networks
Actuator control
Industrial workstations
| No. | Specification | Details |
|---|---|---|
| 1 | Product Code | AC2412 |
| 2 | Product Type | Digital I/O module |
| 3 | Digital Inputs | 4 |
| 4 | Digital Outputs | 4 |
| 5 | Output Type | PNP transistor |
| 6 | Network | AS-Interface |
| 7 | AS-i Profile | S-7.0.E |
| 8 | Connection | M12 |
| 9 | Protection | IP67 |
| 10 | Installation | Field |
| 11 | Input Function | Digital sensing |
| 12 | Output Function | Digital actuation |
| 13 | Output Current | Up to 2 A/channel class |
| 14 | Total Output Capability | Up to 4 A class |
| 15 | Process Data | Digital I/O |
| 16 | Addressing | AS-i |
| 17 | Communication | Cyclic |
| 18 | Sensor Interface | M12 |
| 19 | Actuator Interface | M12 |
| 20 | Controller | AS-i master |
| 21 | Housing | Compact industrial |
| 22 | Diagnostics | Network/channel status |
| 23 | Maintenance | M12 service |
| 24 | Mounting | Distributed field |
| 25 | Application | Industrial automation |
