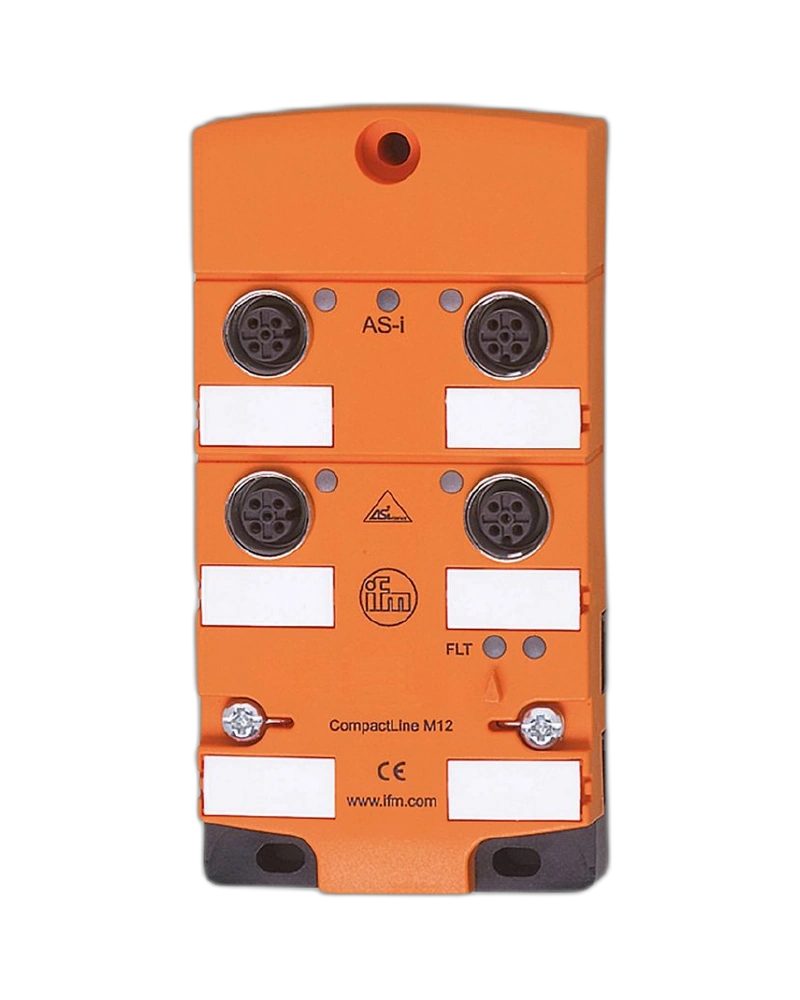

The AC2411 is an AS-Interface CompactLine module combining two digital inputs and two digital outputs. It provides a compact interface for both sensor acquisition and actuator control. M12 connections simplify field wiring and service operations. Its distributed design supports direct machine-level installation. The module is suitable for automation systems requiring balanced input and output functionality.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Product Overview
The AC2411 provides two PNP digital inputs and two transistor outputs. It allows sensors and actuators to be connected through one compact AS-i node. This reduces the number of separate field modules required. The module supports distributed control architectures. Its compact construction is suitable for machine installations.
I/O Performance
Two inputs collect switching signals from field sensors. Two outputs provide digital control signals for actuators. The combination is useful for local machine sequences. AS-i transfers both input and output process data. This supports efficient PLC integration.
Installation & Integration
M12 connectors provide standardized field connections. The module can be installed close to sensors and actuators. AS-i networking reduces cable requirements to the control cabinet. Its compact form supports installation in constrained machine spaces. The architecture is suitable for modular machine design.
Diagnostics & Maintenance
Individual channel states can be monitored through the controller. M12 connections simplify field service. Network diagnostics assist with communication fault identification. Input and output operation can be checked during commissioning. The module supports efficient maintenance practices.
2 digital inputs
2 digital outputs
PNP I/O architecture
M12 connections
AS-i communication
CompactLine design
IP67 field installation
Distributed I/O
Sensor and actuator integration
PLC compatibility
Digital process data
Easy serviceability
Conveyor control
Packaging machinery
Assembly equipment
Pneumatic control
Material handling
Production lines
Machine automation
Sensor monitoring
Actuator switching
Factory automation
PLC I/O expansion
Industrial workstations
| No. | Specification | Details |
|---|---|---|
| 1 | Product Code | AC2411 |
| 2 | Product Type | Digital I/O module |
| 3 | Digital Inputs | 2 |
| 4 | Digital Outputs | 2 |
| 5 | Output Type | Transistor/PNP |
| 6 | Network | AS-Interface |
| 7 | AS-i Profile | S-3.0.E |
| 8 | Connection | M12 |
| 9 | Installation | Field |
| 10 | Protection | IP67 |
| 11 | Input Function | Sensor acquisition |
| 12 | Output Function | Actuator control |
| 13 | Process Data | Digital I/O |
| 14 | Addressing | AS-i |
| 15 | Sensor Supply | AS-i |
| 16 | Actuator Interface | Digital |
| 17 | Controller | AS-i master |
| 18 | Communication | Cyclic |
| 19 | Mounting | Distributed |
| 20 | Housing | Compact industrial |
| 21 | Diagnostics | Network status |
| 22 | Wiring | M12 |
| 23 | Maintenance | Channel-level testing |
| 24 | Integration | PLC |
| 25 | Application | Machine automation |
