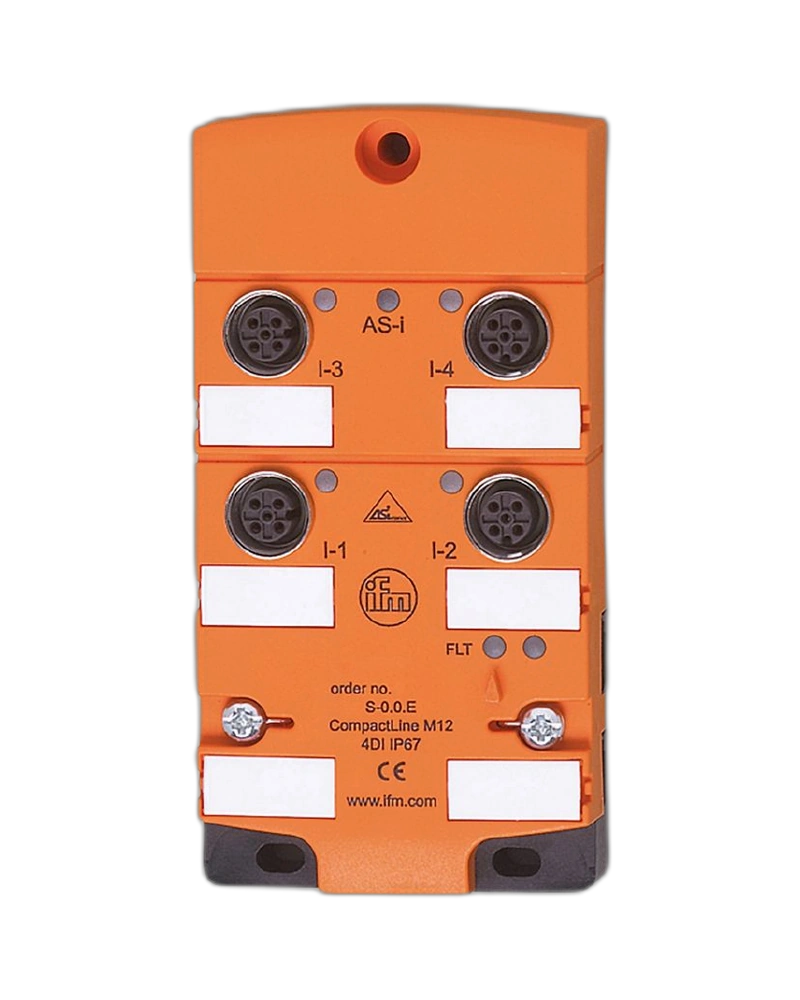

The AC2410 is a compact AS-Interface digital input module providing four PNP digital inputs. It is designed for decentralized connection of industrial sensors and switching devices. The M12 interface simplifies field wiring and maintenance. Its IP67 field construction supports use close to machinery and process equipment. The module is suitable for distributed PLC input acquisition in industrial automation systems.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Product Overview
The AC2410 provides four digital inputs for sensor signal acquisition. It transfers input states to the AS-i network for processing by the PLC. Its compact field architecture allows installation close to sensors. The module reduces the amount of individual sensor wiring returning to the control cabinet. It is suitable for machine and factory automation.
Input Performance
The four inputs accept PNP-type digital signals. Each channel can be used for proximity sensors, photoelectric sensors, switches, or similar devices. Input status is transferred cyclically through AS-i. The module supports organized distributed I/O architecture. This helps simplify machine wiring.
Installation & Integration
M12 connectors provide standardized sensor connections. The module is designed for IP67 field installation. It can be mounted near conveyor sections, assembly stations, or machines. AS-i provides both network communication and field-level integration. The compact design supports high-density installations.
Diagnostics & Maintenance
Input status can be monitored through the AS-i controller. Wiring and sensor operation can be checked channel by channel. The rugged field housing reduces maintenance exposure. M12 connections simplify sensor replacement. Centralized diagnostics reduce troubleshooting time.
4 digital inputs
PNP input technology
M12 connection
AS-Interface communication
CompactLine design
IP67 field protection
Distributed I/O
Sensor integration
PLC compatibility
AS-i addressing
Compact construction
Easy maintenance
Proximity sensors
Photoelectric sensors
Limit switches
Conveyor systems
Assembly machines
Packaging machinery
Material handling
Machine automation
Production lines
Factory automation
Sensor monitoring
PLC input expansion
| No. | Specification | Details |
|---|---|---|
| 1 | Product Code | AC2410 |
| 2 | Product Type | Digital input module |
| 3 | Digital Inputs | 4 |
| 4 | Input Type | PNP |
| 5 | Network | AS-Interface |
| 6 | AS-i Profile | S-0.0.E |
| 7 | Connection | M12 |
| 8 | Installation | Field |
| 9 | Protection | IP67 |
| 10 | Sensor Interface | Digital |
| 11 | Signal Type | Switching |
| 12 | Process Data | Digital input |
| 13 | Addressing | AS-i addressing |
| 14 | Mounting | Distributed field |
| 15 | Sensor Supply | AS-i |
| 16 | Controller | AS-i master |
| 17 | Communication | Cyclic |
| 18 | Diagnostics | Network monitoring |
| 19 | Housing | Compact industrial |
| 20 | Wiring | M12 |
| 21 | Maintenance | Channel testing |
| 22 | Environment | Industrial |
| 23 | Application | Sensor acquisition |
| 24 | Integration | PLC |
| 25 | System Role | Distributed I/O |
