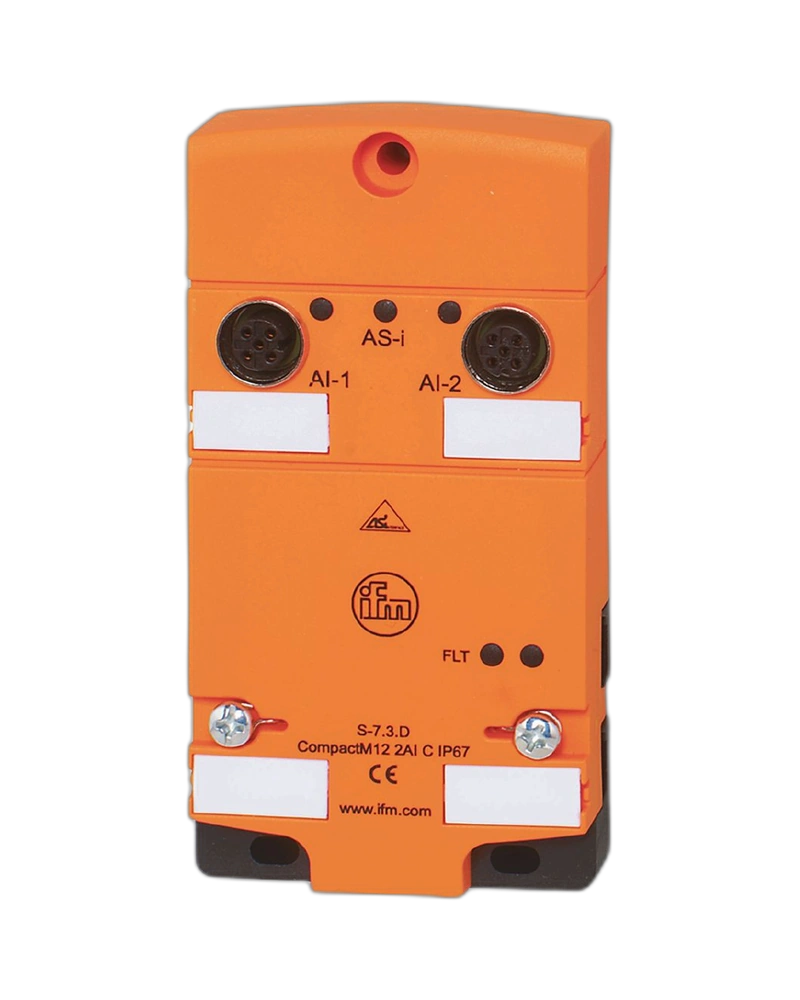

The AC2402 is an AS-Interface CompactLine analogue input module designed to acquire two 4–20 mA signals from connected sensors. It supports 2-wire and 3-wire sensor configurations and provides digital transmission of analogue process values through AS-i. The compact M12 design supports decentralized field installation. Its stainless-steel V4A construction provides enhanced resistance for demanding environments. It is suitable for pressure, flow, level, and process measurement applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Product Overview
The AC2402 provides two analogue inputs for 4–20 mA signal acquisition. It supports 2-wire and 3-wire sensor connections. Measured values are converted and transmitted through the AS-i network. The CompactLine design provides distributed measurement acquisition close to the process. Its IP67-oriented field construction supports industrial environments.
Analogue Signal Processing
The module receives standardized 4–20 mA process signals. It converts the analogue signal into digital AS-i process data. This allows PLC systems to process measurement values without separate analogue I/O cards at every machine section. The module supports efficient decentralized measurement architecture. Its configuration is suitable for common industrial process sensors.
Installation & Integration
M12 connections simplify sensor installation. The compact module can be positioned close to measurement points. AS-i communication reduces long analogue signal cable runs. Distributed installation can improve signal integrity and simplify cabinet wiring. The module integrates directly with AS-i masters and PLC systems.
Diagnostics & Maintenance
The network architecture allows centralized module monitoring. Sensor signal availability can be checked through the controller. The robust field housing reduces exposure-related maintenance. M12 connections simplify sensor replacement. The module supports systematic troubleshooting of analogue channels.
2 analogue inputs
4–20 mA signal
2-wire sensor support
3-wire sensor support
CompactLine architecture
M12 connection
V4A stainless-steel construction
AS-i communication
Distributed field installation
Digital process data
IP67 field protection
PLC integration
Pressure measurement
Flow measurement
Level measurement
Temperature transmitter signals
Process monitoring
Water treatment
Chemical processing
Food processing
Packaging machinery
Industrial process control
Tank monitoring
Machine automation
| No. | Specification | Details |
|---|---|---|
| 1 | Product Code | AC2402 |
| 2 | Product Family | CompactLine |
| 3 | Product Type | Analogue input module |
| 4 | Analogue Inputs | 2 |
| 5 | Signal Range | 4–20 mA |
| 6 | Sensor Wiring | 2-wire / 3-wire |
| 7 | Network | AS-Interface |
| 8 | AS-i Profile | S-7.3.D |
| 9 | Connection | M12 |
| 10 | Housing | V4A stainless steel |
| 11 | Operating Voltage | 26.5–31.6 V DC AS-i |
| 12 | Maximum Input Supply | 200 mA total |
| 13 | Measurement Conversion | Digital process data |
| 14 | Installation | Distributed field |
| 15 | Protection | IP67 |
| 16 | Ambient Temperature | -25 to 80 °C |
| 17 | Sensor Type | Current-output transmitter |
| 18 | Signal Processing | 4–20 mA acquisition |
| 19 | Controller | AS-i master |
| 20 | Mounting | Field mounting |
| 21 | Diagnostics | Network diagnostics |
| 22 | Wiring | M12 sensor connection |
| 23 | Application | Process measurement |
| 24 | Maintenance | Channel-level testing |
| 25 | Integration | PLC/AS-i automation |
