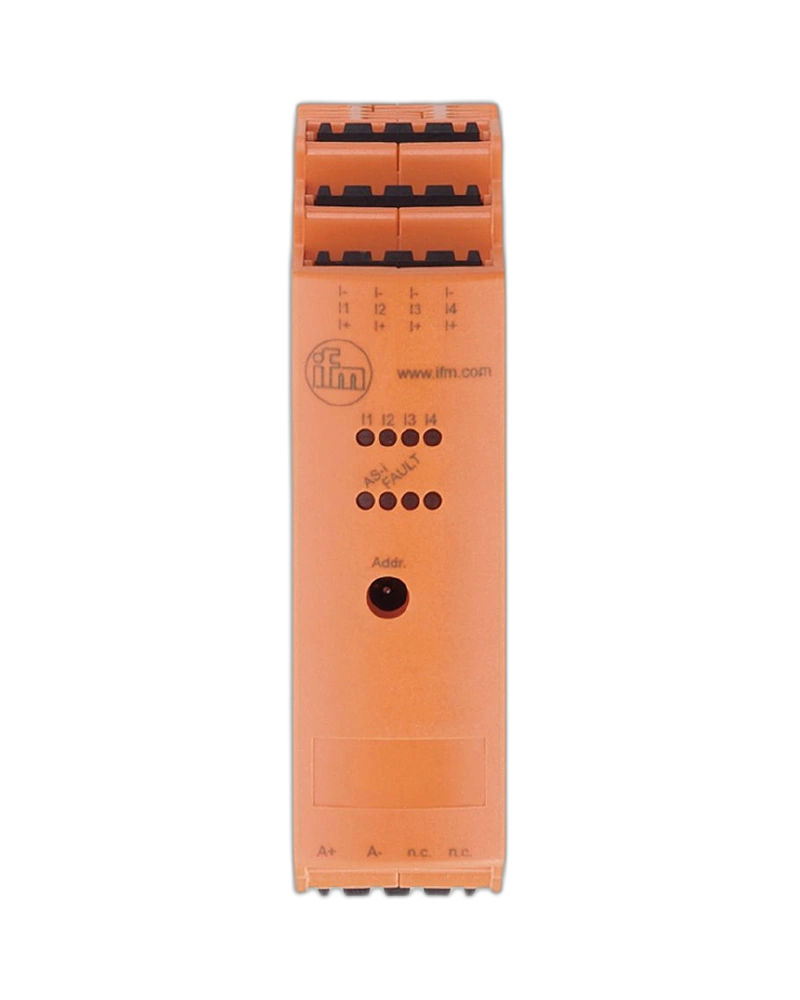

The AC2250 is a SmartL25 AS-Interface control cabinet module designed for four digital inputs. It provides reliable sensor signal acquisition for industrial automation systems. The module communicates input states through the AS-i network to a higher-level controller. Its compact DIN-rail format helps optimize control cabinet space. It is suitable for machine monitoring, sequencing, and distributed sensor applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The AC2250 focuses on digital input acquisition within a control cabinet. Four sensor channels provide information about machine and process conditions. AS-i communication transfers those signals to the automation controller. The SmartL25 enclosure supports compact cabinet integration. LED indicators provide channel and network status. The module is useful for structured sensor wiring in industrial systems.
Digital sensors connect to the available input channels. Each sensor state is converted into digital process information. AS-i transfers the information to the master. The PLC or controller uses these states in machine logic. The module continuously updates the corresponding input data. This enables real-time monitoring of field conditions.
Input LEDs allow quick verification of individual channels. Network indication provides visibility into AS-i communication. Faulty sensor wiring can be isolated by checking the corresponding channel state. Terminals should be inspected during scheduled maintenance. The module can be serviced without redesigning the overall cabinet layout. Proper sensor wiring helps minimize intermittent faults.
Four digital inputs
AS-i communication
SmartL25 design
DIN-rail mounting
Compact cabinet footprint
Digital sensor acquisition
LED diagnostics
Network status indication
Industrial automation compatibility
Efficient cabinet wiring
Machine monitoring
Limit switch inputs
Presence detection
Conveyor systems
Packaging machinery
Assembly lines
Material handling
Process monitoring
Industrial equipment
Factory automation
| No. | Specification | Details |
|---|---|---|
| 1 | Product Code | AC2250 |
| 2 | Product Family | SmartL25 |
| 3 | Product Type | Digital input module |
| 4 | Network | AS-Interface |
| 5 | Inputs | 4 digital |
| 6 | Outputs | None |
| 7 | Input Function | Sensor monitoring |
| 8 | Signal Type | Digital |
| 9 | Sensor Interface | Digital sensors |
| 10 | Communication | AS-i |
| 11 | Addressing | AS-i addressing socket |
| 12 | Process Data | Digital input |
| 13 | Installation | Control cabinet |
| 14 | Mounting | DIN rail TH35 |
| 15 | Housing | Rectangular SmartL25 |
| 16 | Protection | IP20 |
| 17 | Status Indication | Green/yellow/red LEDs |
| 18 | Diagnostics | Network and input status |
| 19 | Controller | AS-i master |
| 20 | Wiring | Cabinet wiring |
| 21 | Environment | Industrial |
| 22 | Maintenance | Channel inspection |
| 23 | Service | DIN-rail replacement |
| 24 | System Integration | AS-i automation |
| 25 | Typical Use | Sensor signal collection |
