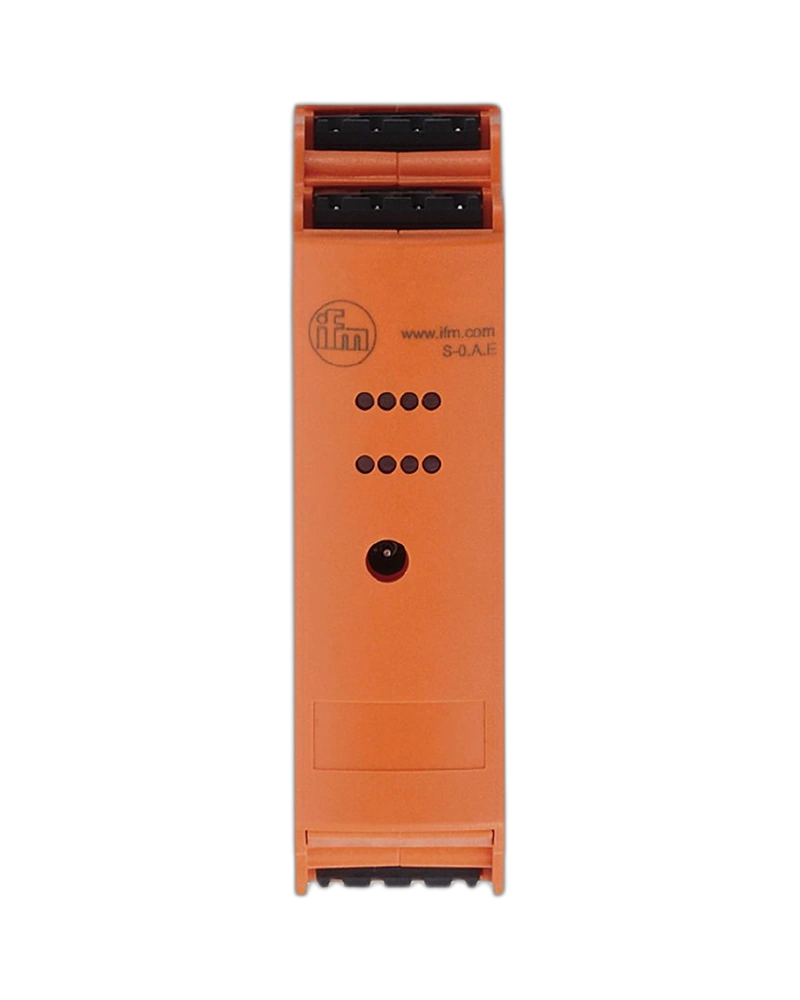

The AC2232 is a SmartL25 AS-Interface module designed for four digital input signals. It provides a compact method of collecting sensor information inside an industrial control cabinet. The module connects field switching devices to an AS-i automation network. Its DIN-rail installation supports organized cabinet construction. It is suitable for machines requiring multiple digital feedback signals.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The module concentrates four digital sensor inputs into one AS-i network node. It reduces the need for individual signal wiring back to a PLC. Sensor states are transferred as AS-i process data. The compact SmartL25 design supports high-density cabinet layouts. Status indication assists technicians during commissioning. The module is suitable for general-purpose industrial sensor acquisition.
Connected sensors generate digital switching signals. These signals enter the four input channels. The module transfers their states to the AS-i master. The controller processes these signals as part of the machine sequence. Changes in sensor state are reflected in the corresponding process data. This enables distributed monitoring of machine conditions.
Individual channel indicators support quick signal verification. AS-i status indication helps confirm network communication. Wiring should be checked when an input remains permanently active or inactive. Sensor functionality should be tested before replacing the module. DIN-rail installation supports quick replacement. Routine terminal inspection helps prevent intermittent signal faults.
Four digital inputs
AS-i communication
SmartL25 cabinet design
DIN-rail mounting
Compact footprint
Sensor signal acquisition
Channel status indication
Network diagnostics
Reduced PLC wiring
Industrial automation integration
Sensor monitoring
Machine sequencing
Conveyor control
Packaging machines
Assembly equipment
Limit switch monitoring
Presence detection
Material handling
Process equipment
Factory automation
| No. | Specification | Details |
|---|---|---|
| 1 | Product Code | AC2232 |
| 2 | Product Family | SmartL25 AS-i |
| 3 | Product Type | Digital input module |
| 4 | Network | AS-Interface |
| 5 | Digital Inputs | 4 |
| 6 | Digital Outputs | None |
| 7 | Input Type | Digital |
| 8 | Signal Source | Sensors/switches |
| 9 | Sensor Interface | Industrial digital sensors |
| 10 | Communication | AS-i |
| 11 | Addressing | AS-i slave addressing |
| 12 | Process Data | Digital input |
| 13 | Installation | Control cabinet |
| 14 | Mounting | DIN rail |
| 15 | Housing | SmartL25 |
| 16 | Status LEDs | Channel and network |
| 17 | Diagnostics | AS-i and input status |
| 18 | Wiring | Cabinet sensor wiring |
| 19 | Controller | AS-i master |
| 20 | Environment | Industrial |
| 21 | Maintenance | Sensor/terminal inspection |
| 22 | Application | Distributed sensor acquisition |
| 23 | Expansion | AS-i architecture |
| 24 | Serviceability | DIN-rail replacement |
| 25 | Typical Use | Digital sensor monitoring |
