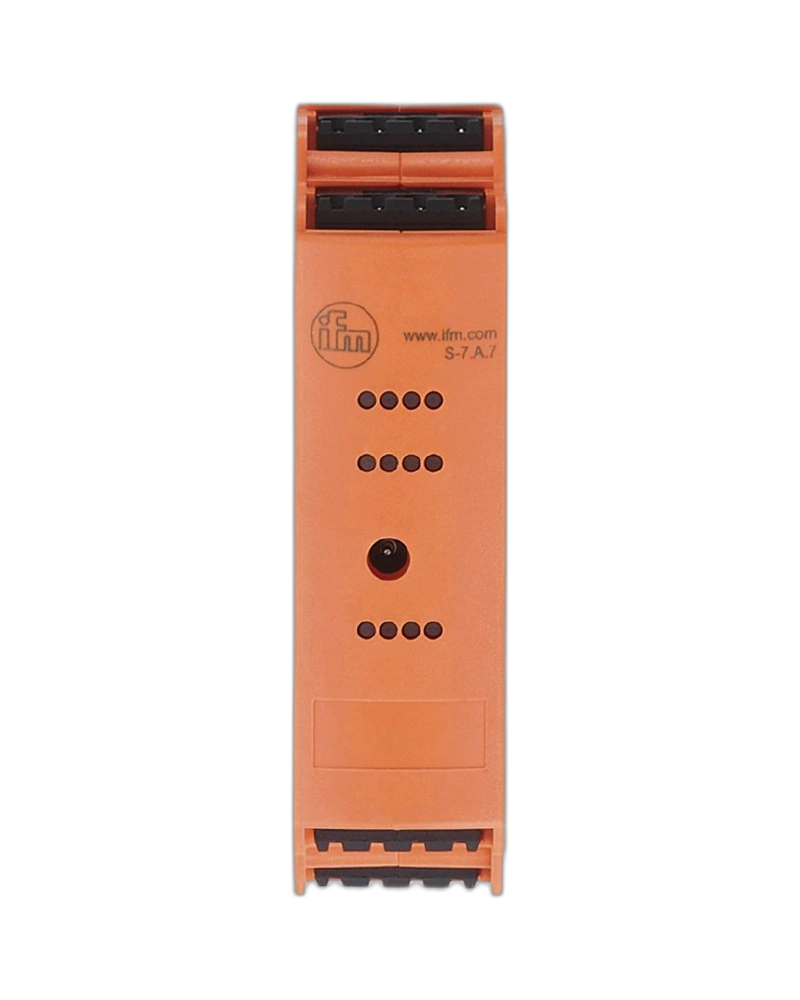

The AC2230 is a SmartL25 AS-Interface control cabinet module with four digital inputs and four digital outputs. It provides a compact solution for connecting sensors and actuators to an AS-i automation network. The module is designed for structured control cabinet installation. Its balanced I/O configuration supports machines requiring both feedback and control signals. The device helps reduce conventional point-to-point wiring between field equipment and PLC systems.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The AC2230 provides four digital inputs for machine-state monitoring. Four digital outputs allow control of compatible actuators. AS-i communication transfers process information between the module and the automation controller. The SmartL25 design supports compact DIN-rail cabinet installation. Channel status indication simplifies commissioning and service. The module is suitable for general industrial automation applications.
Input channels receive digital switching signals from field sensors. These signals are transferred to the AS-i master. Output commands from the master are mapped to the four digital outputs. Connected actuators respond to those output commands. The controller can therefore coordinate machine sequences using distributed I/O. This architecture provides a structured alternative to large bundles of individual PLC wiring.
Channel indicators help technicians verify input and output states. AS-i status indication helps identify communication problems. Sensor wiring should be checked when input feedback differs from the actual machine state. Output wiring and actuator conditions should be inspected when commands do not produce expected movement. DIN-rail mounting simplifies service replacement. Preventive terminal inspection helps maintain reliable connections.
Four digital inputs
Four digital outputs
AS-i communication
SmartL25 housing
DIN-rail installation
Compact control cabinet design
I/O status indication
Distributed I/O architecture
Industrial sensor integration
Actuator control capability
Machine automation
Packaging systems
Assembly equipment
Conveyors
Material handling
Industrial fixtures
Sensor monitoring
Actuator control
Process machinery
Factory automation
| No. | Specification | Details |
|---|---|---|
| 1 | Product Code | AC2230 |
| 2 | Product Family | SmartL25 |
| 3 | Product Type | Digital I/O module |
| 4 | Network | AS-Interface |
| 5 | I/O Configuration | 4DI / 4DO |
| 6 | Inputs | 4 digital |
| 7 | Outputs | 4 digital |
| 8 | Input Signal | Digital |
| 9 | Output Signal | Digital |
| 10 | Sensor Interface | Digital sensor |
| 11 | Actuator Interface | Digital actuator |
| 12 | Communication | AS-i |
| 13 | Addressing | AS-i addressing |
| 14 | Process Data | Digital I/O |
| 15 | Installation | Control cabinet |
| 16 | Mounting | DIN rail |
| 17 | Housing | SmartL25 |
| 18 | Status Indication | LED |
| 19 | Diagnostics | AS-i/I/O |
| 20 | Wiring | Cabinet wiring |
| 21 | Controller | AS-i master |
| 22 | Environment | Industrial |
| 23 | Maintenance | Terminal/channel inspection |
| 24 | Expansion | AS-i network |
| 25 | Typical Use | Machine control |
