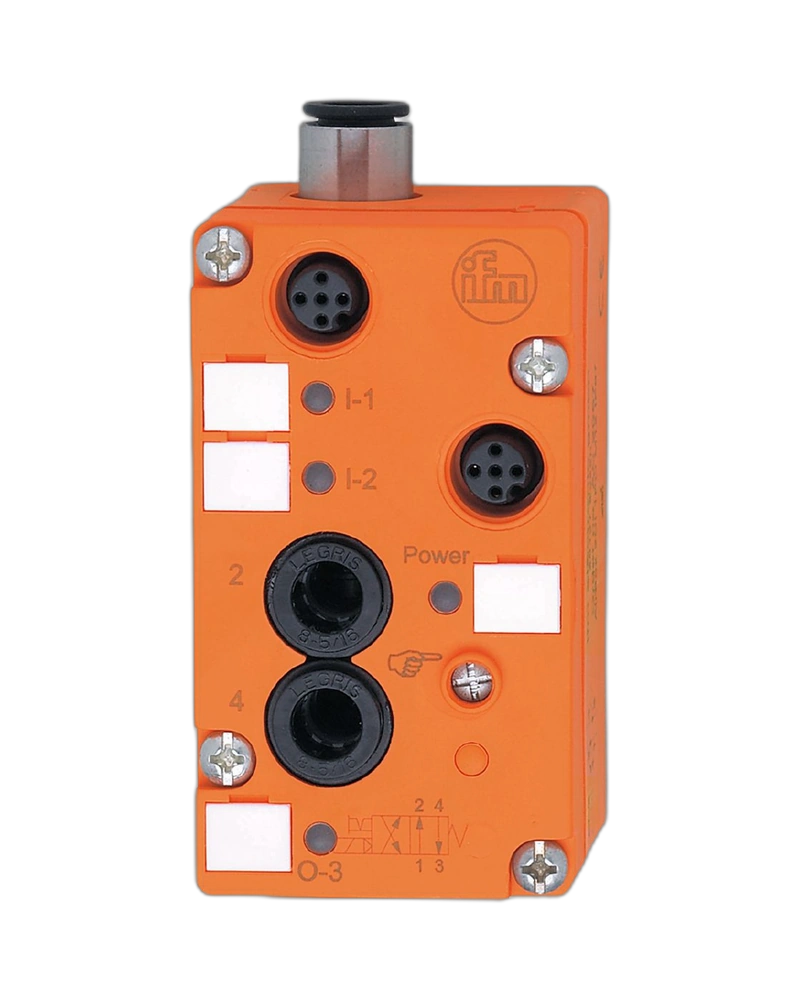

The AC2057 is a compact AS-Interface AirBox for decentralized pneumatic control. It provides two digital inputs and one pneumatic output for sensor and actuator integration. The M12 connection concept simplifies field wiring and service access. Its V2A construction is suited to demanding industrial installations. The module helps bring pneumatic control closer to the machine process.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The module integrates AS-i communication with pneumatic actuator control. Two digital inputs provide feedback from connected sensors. One pneumatic output controls a compatible pneumatic function. Decentralized installation can reduce the amount of wiring between control cabinets and machine devices. The compact construction supports installation close to the actuator. It is suitable for automated machines using pneumatic motion.
Sensors provide digital switching signals through the M12 interface. The AirBox sends those signals to the AS-i master. Control commands return through AS-i to the pneumatic output. The output activates the connected pneumatic circuit. Sensor feedback can then confirm actuator position or machine state. This creates a simple distributed automation loop.
AS-i LED indication helps identify network communication status. Input and output indicators support channel-level troubleshooting. Pneumatic tubing should be inspected for leakage. M12 connectors should be checked for secure installation. Clean compressed air helps protect pneumatic components. Functional testing should be performed during planned maintenance.
Two digital inputs
One pneumatic output
M12 connection
V2A construction
AS-i communication
Compact AirBox design
Decentralized pneumatic control
Sensor feedback
Reduced wiring
Industrial automation support
Pneumatic cylinders
Small valve control
Packaging equipment
Assembly machines
Conveyor systems
Material handling
Machine tooling
Automated fixtures
Process machinery
Distributed I/O systems
| No. | Specification | Details |
|---|---|---|
| 1 | Product Code | AC2057 |
| 2 | Product Family | AS-Interface AirBox |
| 3 | Product Type | Pneumatic I/O module |
| 4 | Network | AS-Interface |
| 5 | Digital Inputs | 2 |
| 6 | Pneumatic Outputs | 1 |
| 7 | Input Type | Digital |
| 8 | Output Type | Pneumatic |
| 9 | Field Connection | M12 |
| 10 | Housing Material | V2A |
| 11 | Sensor Interface | Digital sensor |
| 12 | Actuator Interface | Pneumatic |
| 13 | Communication | AS-i |
| 14 | Installation | Field |
| 15 | Wiring | Decentralized |
| 16 | Air Connection | Pneumatic tubing |
| 17 | Feedback | Digital input feedback |
| 18 | Status LEDs | Network/channel indication |
| 19 | Diagnostics | AS-i and I/O |
| 20 | Maintenance | Pneumatic/electrical |
| 21 | Controller | AS-i master |
| 22 | Environment | Industrial |
| 23 | Control Function | Pneumatic switching |
| 24 | System Integration | AS-i automation |
| 25 | Typical Use | Distributed pneumatic control |
