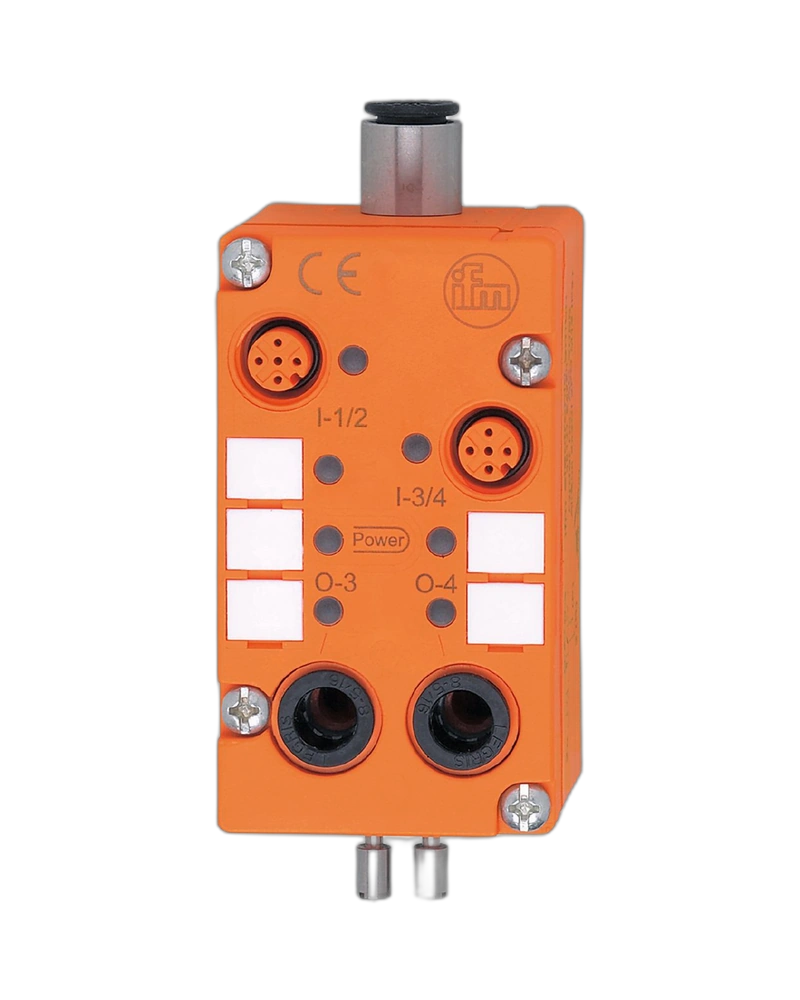

The AC2055 is an AS-Interface AirBox designed for decentralized pneumatic actuator control. It combines four digital inputs with two pneumatic outputs for machine automation applications. The M12 connections support convenient field wiring for sensors and actuators. Its stainless-steel-related V2A construction makes it suitable for demanding industrial installations. The module helps reduce wiring complexity by combining I/O and pneumatic control near the process.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The AC2055 provides two groups of digital inputs for collecting sensor feedback. Two pneumatic outputs allow control of multiple pneumatic functions. AS-i communication connects the field module to the automation controller. The decentralized design places control close to the pneumatic equipment. M12 connectors support practical sensor connections. The design is particularly useful in machinery requiring multiple pneumatic operations.
Digital sensor signals are collected through the module inputs. These signals are communicated over AS-i to the control system. The controller sends switching commands through the AS-i network. The AirBox converts those commands into pneumatic output actions. Sensors can provide position or process feedback to the controller. This supports coordinated pneumatic sequences without extensive cabinet wiring.
Green AS-i indication provides network operating information. Channel LEDs help identify input and output switching states. Pneumatic connections should be inspected for leaks and secure tubing. Sensor connectors should be checked for contamination and mechanical damage. Proper compressed-air quality supports dependable valve operation. Routine cleaning and functional testing help maintain field reliability.
Four digital inputs
Two pneumatic outputs
M12 field connections
V2A construction
AS-i communication
Decentralized actuator control
Integrated sensor feedback
Reduced wiring effort
Pneumatic system integration
Industrial field installation
Pneumatic cylinder control
Valve island applications
Packaging machinery
Food and process equipment
Conveyor systems
Material handling
Assembly automation
Machine tooling
Pick-and-place equipment
Distributed pneumatic control
| No. | Specification | Details |
|---|---|---|
| 1 | Product Code | AC2055 |
| 2 | Product Family | AS-Interface AirBox |
| 3 | Product Type | Pneumatic I/O module |
| 4 | Network | AS-Interface |
| 5 | Digital Inputs | 4 |
| 6 | Pneumatic Outputs | 2 |
| 7 | Input Arrangement | 2 × 2 digital inputs |
| 8 | Output Arrangement | 2 pneumatic outputs |
| 9 | Field Connector | M12 |
| 10 | Housing Material | V2A-related stainless construction |
| 11 | Input Type | Digital |
| 12 | Output Type | Pneumatic |
| 13 | Communication | AS-i |
| 14 | Installation | Field mounting |
| 15 | Sensor Interface | M12 digital sensors |
| 16 | Actuator Interface | Pneumatic |
| 17 | Air Supply | Filtered compressed air |
| 18 | Pneumatic Connection | Tube fitting interface |
| 19 | Status Indication | AS-i and channel LEDs |
| 20 | Diagnostics | Network/channel status |
| 21 | Wiring Concept | Decentralized |
| 22 | Maintenance | Electrical/pneumatic inspection |
| 23 | Controller | AS-i master |
| 24 | Environment | Industrial field |
| 25 | Typical Use | Decentralized pneumatic automation |
