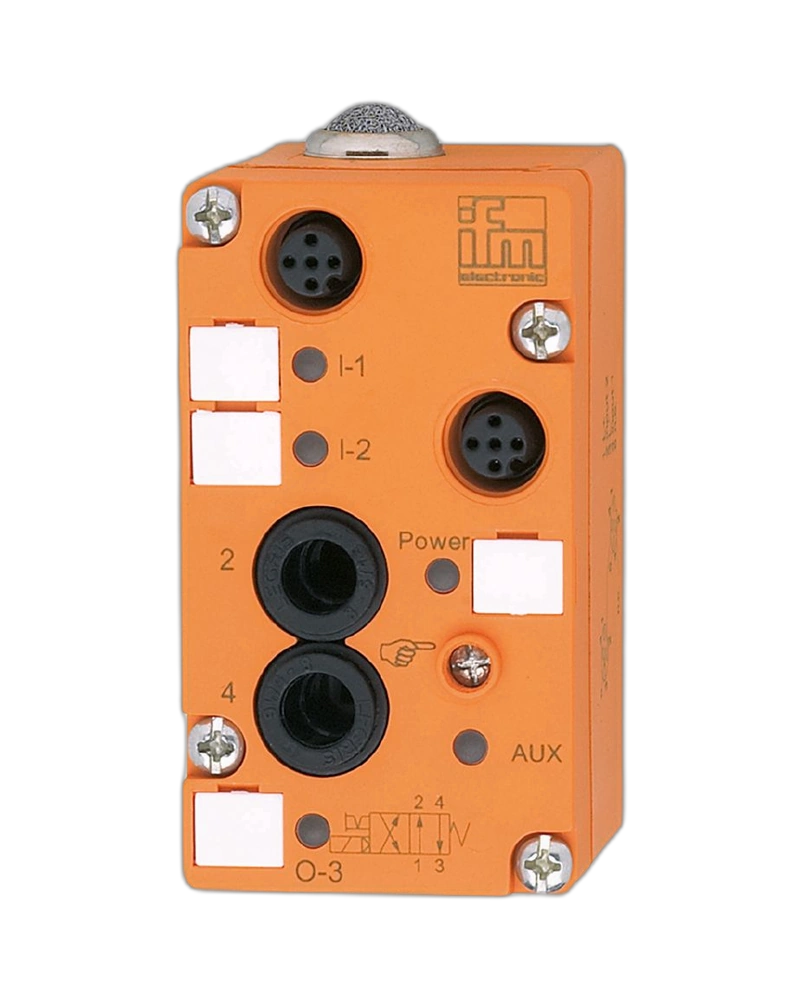

The AC2048 is an AS-Interface AirBox designed for decentralized pneumatic automation. It combines digital input functionality with a pneumatic output in a compact field-mounted format. The M12 interface supports convenient sensor connection in industrial environments. Its decentralized architecture reduces the need for long pneumatic and electrical wiring runs. The AirBox concept is suitable for machine automation where pneumatic actuation is required near the process.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The AC2048 is designed to place AS-i I/O and pneumatic control close to the actuator. Two digital inputs provide sensor feedback from connected field devices. One pneumatic output enables control of a compatible pneumatic actuator or valve arrangement. M12 connectivity supports practical field wiring. Decentralized placement can simplify machine architecture and reduce cabinet complexity. The module is suited to automation environments requiring integrated electrical and pneumatic control.
Sensor signals enter the digital input channels through the field connection. AS-i transfers the input information to the controller. Output commands are transmitted from the AS-i master to the AirBox. The pneumatic output responds to the appropriate control command. Connected sensors provide feedback for closed-loop machine sequences. This allows pneumatic control and feedback to be managed through one distributed automation point.
LED indications assist with AS-i and switching-state diagnosis. Sensor connections should be checked when input feedback is incorrect. Pneumatic tubing should be inspected for leaks and mechanical damage. Air quality should be maintained according to the pneumatic system requirements. M12 connectors should remain properly tightened and protected. Periodic functional testing helps maintain reliable actuator operation.
AS-i AirBox architecture
Two digital inputs
One pneumatic output
M12 field connection
Decentralized pneumatic control
Reduced wiring complexity
Integrated sensor feedback
Compact field installation
AS-i communication
Machine automation compatibility
Pneumatic cylinder control
Valve actuation
Packaging machines
Material handling
Assembly automation
Conveyor systems
Pick-and-place systems
Machine tooling
Industrial automation
Decentralized I/O systems
| No. | Specification | Details |
|---|---|---|
| 1 | Product Code | AC2048 |
| 2 | Product Family | AS-Interface AirBox |
| 3 | Product Type | Pneumatic I/O module |
| 4 | Network | AS-Interface |
| 5 | Digital Inputs | 2 |
| 6 | Pneumatic Outputs | 1 |
| 7 | Input Type | Digital |
| 8 | Output Type | Pneumatic |
| 9 | Field Connector | M12 |
| 10 | Sensor Interface | Digital sensor |
| 11 | Actuator Interface | Pneumatic actuator |
| 12 | Communication | AS-i |
| 13 | Installation | Field-mounted |
| 14 | Wiring Concept | Decentralized |
| 15 | Pneumatic Function | Air output control |
| 16 | Feedback | Digital sensor feedback |
| 17 | Status Indication | LED |
| 18 | Diagnostics | AS-i and channel status |
| 19 | Maintenance | Electrical and pneumatic inspection |
| 20 | Tubing Interface | Pneumatic tubing |
| 21 | Environment | Industrial field |
| 22 | Control Architecture | Distributed |
| 23 | Controller | AS-i master |
| 24 | Typical Load | Pneumatic actuator |
| 25 | Typical Use | Machine pneumatic automation |
