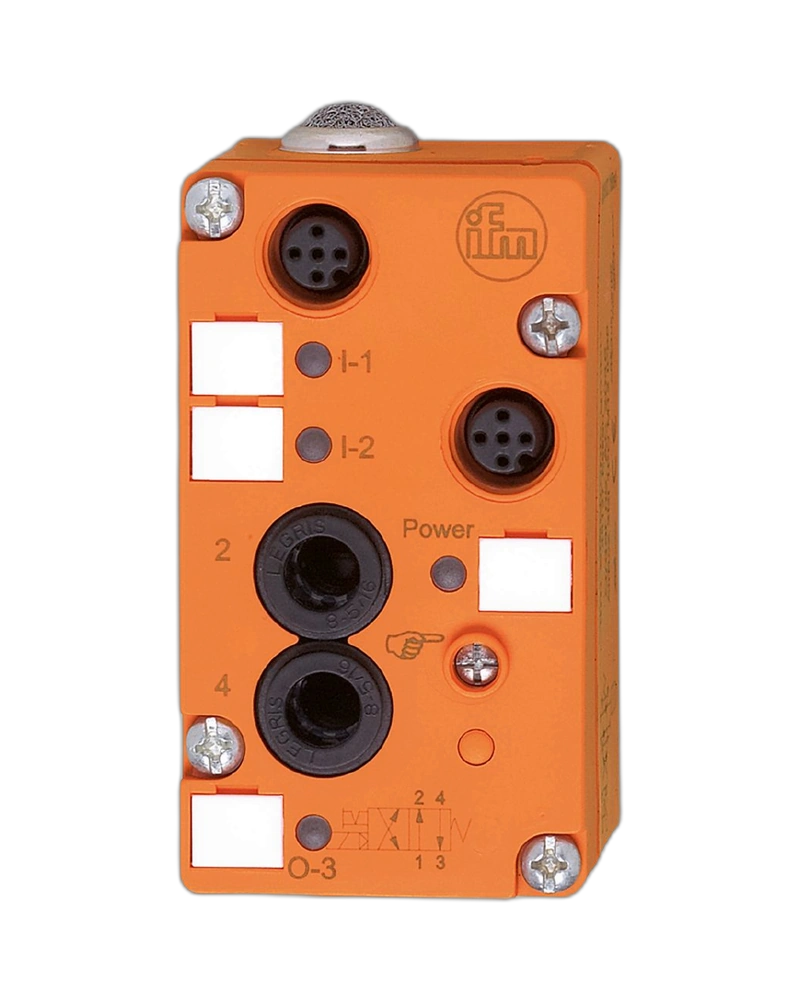

The AC2046 is an AS-Interface AirBox designed for compact decentralized pneumatic automation. It combines digital sensor inputs with a pneumatic output for localized machine control. The M12 connection provides a practical interface for compatible field devices. Its distributed architecture helps reduce wiring between the control cabinet and actuator. The module is suitable for machines requiring simple pneumatic control with sensor feedback.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The AC2046 provides two digital inputs for collecting sensor information. One pneumatic output provides control of a connected pneumatic function. AS-i communication links the field module with the automation controller. The compact AirBox design supports installation near the actuator. Localized I/O can reduce wiring complexity and improve machine modularity. The module is appropriate for a range of industrial pneumatic applications.
Digital sensors send machine-state information through the input channels. The AirBox transfers these signals to the AS-i master. The controller evaluates the sensor states according to the programmed sequence. Output commands are sent back through the AS-i network. The pneumatic output activates the connected actuator function. Sensor feedback then confirms the resulting machine condition.
AS-i status indication helps verify network communication. Input and output status can be used for basic troubleshooting. M12 connections should be inspected for secure attachment. Pneumatic tubing should be checked for leakage and wear. Sensor faults should be distinguished from module faults during diagnosis. Routine functional testing helps maintain reliable machine operation.
Two digital inputs
One pneumatic output
M12 field connection
AS-i communication
Compact AirBox design
Decentralized control
Sensor feedback
Pneumatic actuator integration
Reduced wiring
Industrial field installation
Pneumatic cylinder control
Small actuator systems
Packaging machinery
Assembly equipment
Conveyor systems
Material handling
Machine fixtures
Pick-and-place equipment
Industrial automation
Distributed I/O systems
| No. | Specification | Details |
|---|---|---|
| 1 | Product Code | AC2046 |
| 2 | Product Family | AS-Interface AirBox |
| 3 | Product Type | Pneumatic I/O module |
| 4 | Network | AS-Interface |
| 5 | Digital Inputs | 2 |
| 6 | Pneumatic Outputs | 1 |
| 7 | Input Type | Digital |
| 8 | Output Type | Pneumatic |
| 9 | Field Connector | M12 |
| 10 | Sensor Interface | Digital sensor |
| 11 | Actuator Interface | Pneumatic |
| 12 | Communication | AS-i |
| 13 | Installation | Field-mounted |
| 14 | Wiring Concept | Decentralized |
| 15 | Pneumatic Interface | Tube connection |
| 16 | Feedback | Digital input |
| 17 | Status Indication | LED |
| 18 | Diagnostics | AS-i/channel |
| 19 | Controller | AS-i master |
| 20 | Maintenance | Electrical/pneumatic |
| 21 | Environment | Industrial field |
| 22 | Control Function | Pneumatic switching |
| 23 | System Integration | AS-i automation |
| 24 | Serviceability | Field-accessible |
| 25 | Typical Use | Compact pneumatic automation |
