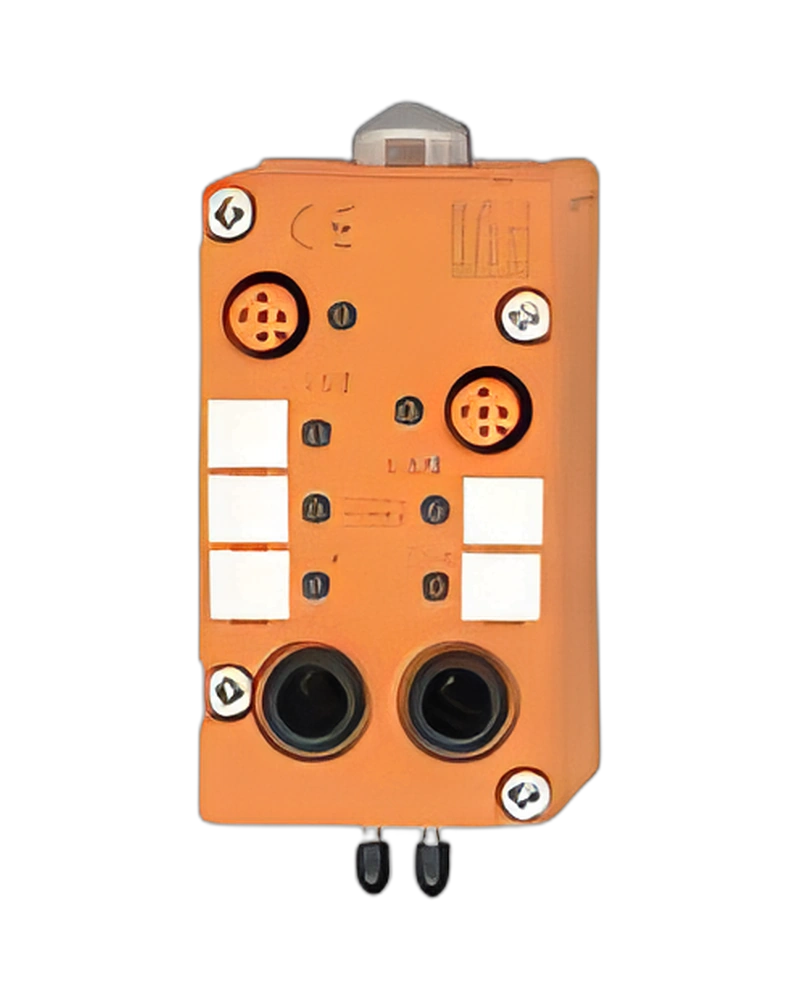

The AC2042 is an AS-Interface AirBox designed for decentralized control of pneumatic machine functions. It combines digital input channels with pneumatic outputs in a field-oriented design. M12 connections provide convenient integration of industrial sensors. AS-i communication connects the AirBox to the automation controller. The module helps simplify wiring by bringing electrical and pneumatic control closer to the actuator.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The AC2042 provides a combination of sensor acquisition and pneumatic actuation. Multiple digital inputs allow machine feedback to be collected locally. Pneumatic outputs provide control of connected pneumatic functions. AS-i handles communication with the higher-level automation system. The distributed architecture supports modular machine construction. It is suitable for industrial systems using pneumatic actuators.
Field sensors provide switching information to the input channels. The module communicates these states over AS-i. The automation controller processes the feedback. Output commands are transmitted to the AirBox. Pneumatic outputs respond to those commands and control the connected equipment. The cycle continues as sensors report the resulting machine state.
Network LEDs help identify AS-i communication status. Channel indicators assist with sensor and output troubleshooting. Pneumatic tubing should be checked for leakage. M12 connectors should be inspected for correct seating. Sensor functionality should be verified before module replacement. Periodic pneumatic and electrical maintenance supports reliable operation.
Four digital inputs
Two pneumatic outputs
M12 connections
AS-i communication
Decentralized I/O
Pneumatic actuator control
Sensor feedback
Compact field design
Reduced installation complexity
Industrial automation support
Pneumatic automation
Cylinder control
Valve control
Packaging systems
Assembly machines
Conveyors
Material handling
Pick-and-place systems
Machine tooling
Factory automation
| No. | Specification | Details |
|---|---|---|
| 1 | Product Code | AC2042 |
| 2 | Product Family | AS-Interface AirBox |
| 3 | Product Type | Pneumatic I/O module |
| 4 | Network | AS-Interface |
| 5 | Digital Inputs | 4 |
| 6 | Pneumatic Outputs | 2 |
| 7 | Input Configuration | 2 × 2DI |
| 8 | Output Configuration | 2PO |
| 9 | Connector | M12 |
| 10 | Input Type | Digital |
| 11 | Output Type | Pneumatic |
| 12 | Sensor Interface | Digital field sensor |
| 13 | Actuator Interface | Pneumatic |
| 14 | Communication | AS-i |
| 15 | Installation | Field |
| 16 | Wiring | Decentralized |
| 17 | Pneumatic Connection | Tube fitting |
| 18 | Status Indication | LED |
| 19 | Diagnostics | AS-i and I/O |
| 20 | Controller | AS-i master |
| 21 | Maintenance | Pneumatic/electrical |
| 22 | Environment | Industrial |
| 23 | Control Function | Pneumatic actuation |
| 24 | System Integration | AS-i network |
| 25 | Typical Use | Distributed pneumatic machine control |
