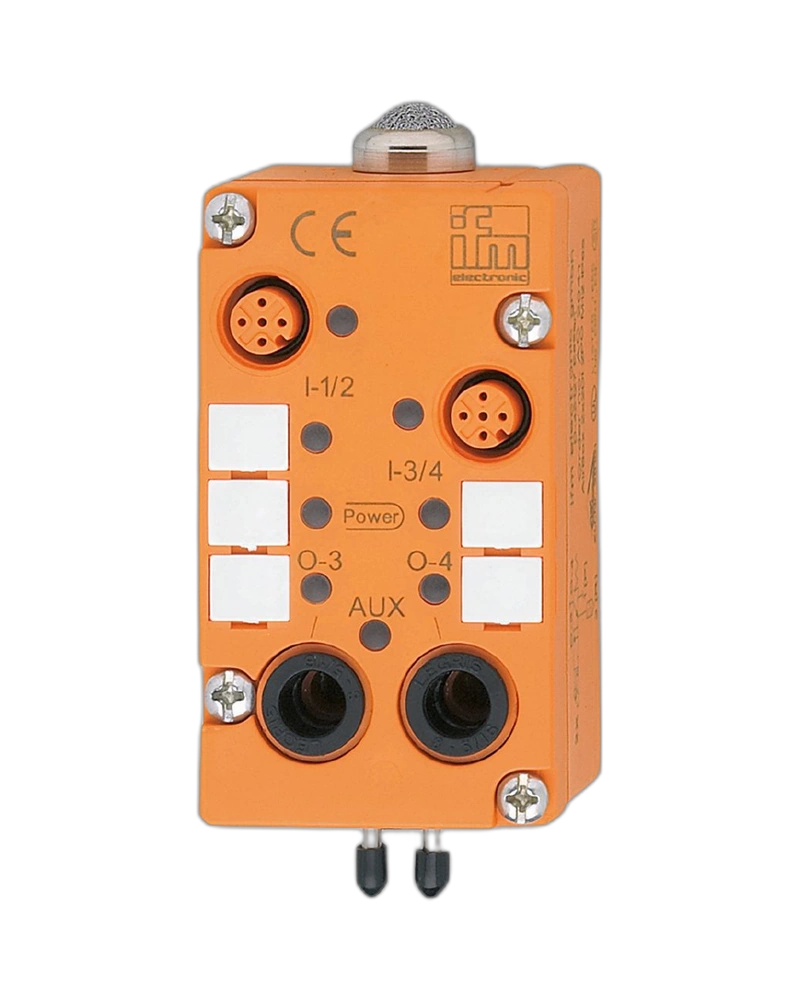

The AC2041 is an AS-Interface AirBox designed for decentralized pneumatic automation. It combines multiple digital sensor inputs with pneumatic outputs for machine control. The M12 interface supports practical connection of field sensors. Its integrated electrical and pneumatic functions can reduce installation complexity. The module is suitable for machines requiring coordinated sensor feedback and pneumatic actuation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The AirBox architecture places pneumatic control close to the machine process. Digital inputs collect feedback from connected sensors. Pneumatic outputs control suitable actuator functions. AS-i provides the communication path to the automation controller. This reduces the need for separate wiring structures for each field function. The module supports compact distributed machine design.
Sensors provide digital feedback through the input channels. The AirBox transfers this information over AS-i. The controller processes the input states and sends pneumatic commands. The module operates the corresponding pneumatic outputs. Sensor feedback allows the controller to sequence machine movements. This creates an integrated distributed pneumatic I/O point.
LEDs provide basic AS-i and channel status information. M12 connectors should be inspected for secure installation. Pneumatic tubing should be checked for leaks and damage. Input feedback should be compared with actual sensor states. Output operation should be tested during scheduled maintenance. Maintaining clean compressed air helps support dependable pneumatic operation.
Four digital inputs
Two pneumatic outputs
M12 connection
AS-i communication
Decentralized pneumatic control
Integrated sensor feedback
Compact AirBox design
Reduced wiring
Field-level installation
Industrial automation compatibility
Cylinder control
Valve actuation
Packaging machinery
Assembly automation
Conveyor systems
Material handling
Machine tooling
Pick-and-place systems
Industrial fixtures
Process automation
| No. | Specification | Details |
|---|---|---|
| 1 | Product Code | AC2041 |
| 2 | Product Family | AS-Interface AirBox |
| 3 | Product Type | Pneumatic I/O module |
| 4 | Network | AS-Interface |
| 5 | Digital Inputs | 4 |
| 6 | Pneumatic Outputs | 2 |
| 7 | Input Arrangement | 2 × 2 digital inputs |
| 8 | Output Arrangement | 2 pneumatic outputs |
| 9 | Connector | M12 |
| 10 | Input Type | Digital |
| 11 | Output Type | Pneumatic |
| 12 | Sensor Interface | M12 sensor connection |
| 13 | Actuator Interface | Pneumatic |
| 14 | Communication | AS-i |
| 15 | Installation | Field |
| 16 | Wiring | Decentralized |
| 17 | Pneumatic Interface | Tube connection |
| 18 | Status Indication | LED |
| 19 | Diagnostics | AS-i/channel |
| 20 | Controller | AS-i master |
| 21 | Maintenance | Electrical/pneumatic |
| 22 | Environment | Industrial |
| 23 | Control Function | Pneumatic switching |
| 24 | System Integration | AS-i |
| 25 | Typical Use | Distributed pneumatic automation |
