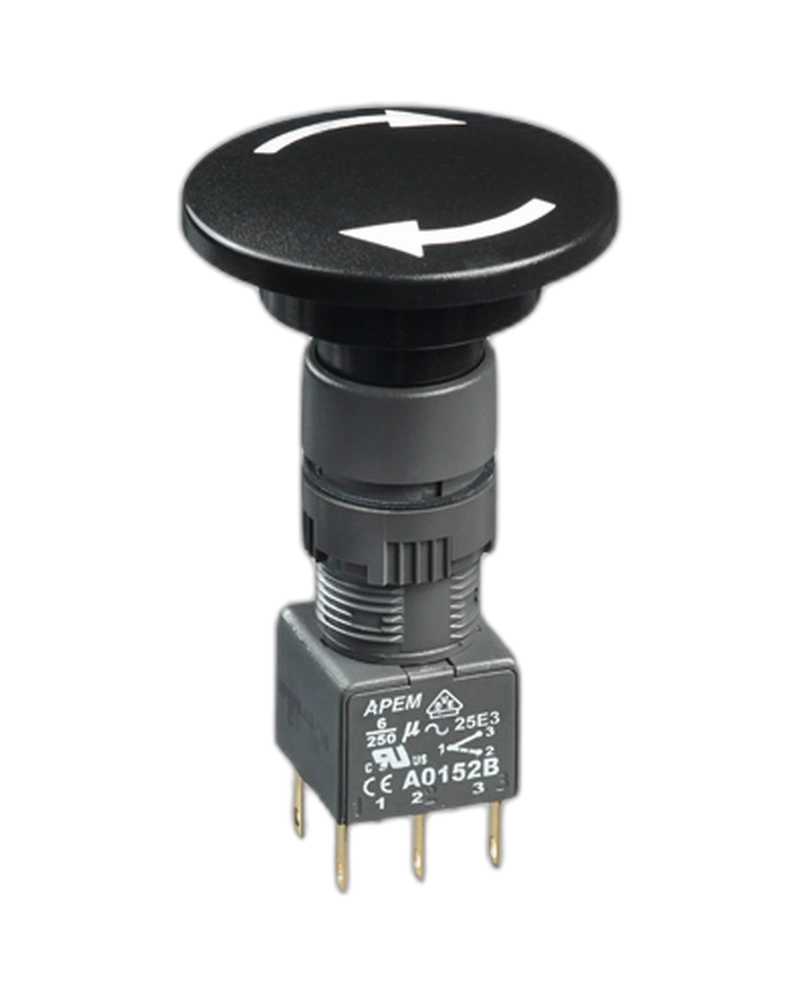

A01 - mushroom head pushbutton switches
The APEM A01 - mushroom head pushbutton switches is a Switches and Pushbutton with documented product-specific characteristics including Operating temperature: -20°C to +55°C; Sealing: Panel sealed to IP65, rear of panel IP40 A01 - mushroom head pushbutton switches A range of 16mm panel mounting mushroom head pushbutton switches, available latching and momentary with custom engraved, two different head; Electrical life: 50.000 cycles min..
Key Features
- Operating temperature: -20°C to +55°C
- Sealing: Panel sealed to IP65, rear of panel IP40 A01 - mushroom head pushbutton switches A range of 16mm panel mounting mushroom head pushbutton switches, available latching and momentary with custom engraved, two different head
- Environmental protection : IP65
- Electrical life : 50.000 cycles min.
- A01 - mushroom head pushbutton switches A range of 16mm panel mounting mushroom head pushbutton switches, available latching and momentary with custom engraved, two different head sizes and many accessories available.
- Modular construction
- Two mushroom head sizes
- Approvals: UL, VDE
- Typical Applications
- Automotive
- Marine
- Control panels
- Mosaic panels
- Industrial lathes
- Environmental protection : IP65 Modular construction Electrical life : 50.000 cycles min.
- According to EN 60947-5-5
Technical Specifications
Electrical Specifications
| Feature | Specification |
|---|
| Insulation resistance | 50 M min Dielectric test voltage : 2900 V |
| function | push to shut off, twist to release Current/ |
General Specifications
| Feature | Specification |
|---|
| Panel thickness | 6 mm (.236) max. Mechanical life : 6,050 cycles |
| Operating force | 18 to 20 N Soldering : 350 °u001fC, 5 seconds (IEC 68-2-2-20Tb, method 2) Switch |
| Torque | 0.8 Nm |
Specifications
| Feature | Specification |
|---|
| Electrical life | 50.000 cycles min. |
| voltage | 2900 V |
