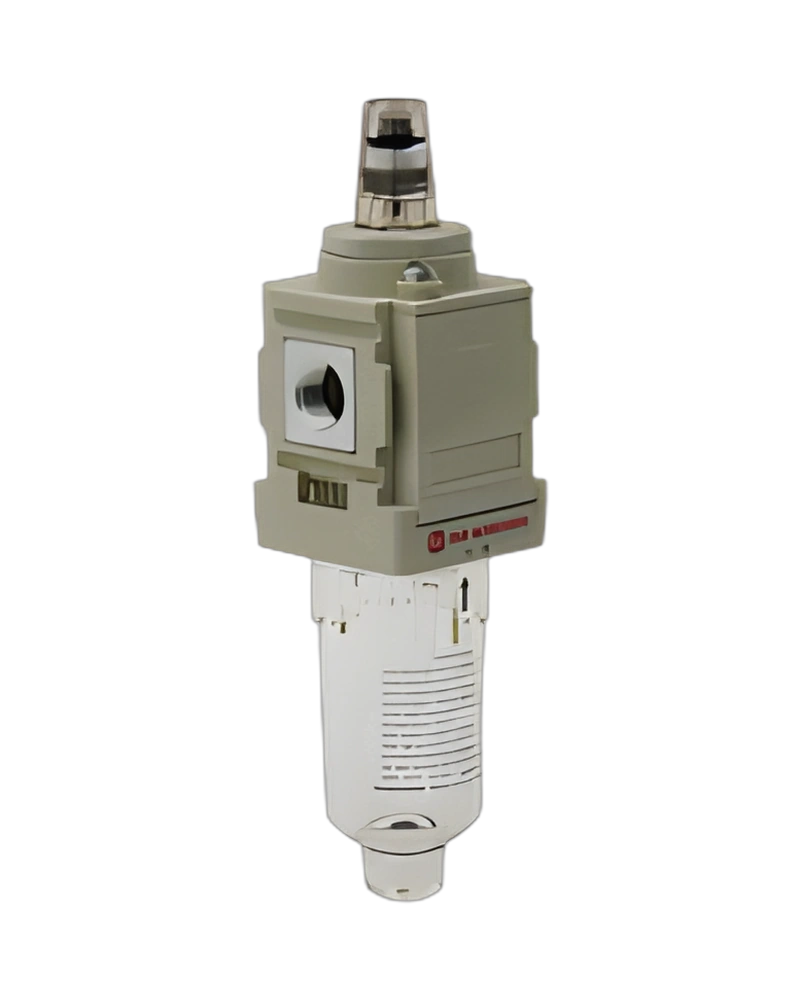

L49C-1GP-ETN is a NORGREN configuration represented by 49 Series Lubricator, G1/8. This product entry presents the listed configuration and model-specific technical information for selection and comparison.
The selected configuration is identified by 49 Series Lubricator, G1/8. The principal recorded product data includes Medium: Compressed air,. Maximum Inlet Pressure: 10 bar (145 psi). Port Size: G1/8, G1/4, G3/8, G1/2. Drain Type: Closed bottom. Operating Temperature: 0 … +60°C (+32 ... +140°F). Flow: 78.4L/s , operating pressure. Bowl Material: Transparent Polycarbonate. Materials: 1/8” & 1/4” Body.
Bowl Capacity: G1/8 & G1/4: 20 ml. Medium: Compressed air, filtered to better than 40 μm. Maximum Supply Pressure: 10 bar (145 psi). Flow: 78.4L/s , operating pressure 6.3bar with 0.5bar pressure drop, Port size 1/2”. Bowl Capacity: G1/8 & G1/4: 20 ml G3/8 & G1/2: 85 ml Start point *1): 1/8” & 1/4”: 0,25 l/s 3/8”, 1/2”: 0,5 l/s *1) Minimum flow ra te for lubricator operation at 5 bar. Operating Temperature: 0 … +60°C (+32 ... +140°F) Air supply must be dry enough to avoid ice formation at temperatures below +2°C (+35°F).. Materials: 1/8” & 1/4” Body: Polyamide 3/8” & 1/2” Body: Die casting Aluminum Bowl: Transparent Polycarbonate Bowl cover: Polyamide Elastomers: Nitrile. Port Size: C Bracket Page 4 T Bracket *1) Page 4 Lubricator bowl G1/8 & G1/4 49B-021 49B-031 49B-LB1 G3/8 & G1/2 49B-022 49B-032 49B-LB2 1) T Bracket can be used only when two or more parts of the same port size, or with other 49 Series FRL.
Languages 0 Basket
The listed product specifies Medium as Compressed air,. This stated value forms part of the model-specific product information.
For this configuration, Maximum Inlet Pressure is 10 bar (145 psi). The value is retained as part of the product definition used for catalogue selection.
The product record includes Port Size: G1/8, G1/4, G3/8, G1/2. This is a configuration-specific value for the listed NORGREN model.
The selected model is listed with Drain Type as Closed bottom. This detail belongs to the stated product configuration.
| Specification | Value |
|---|---|
| Medium | Compressed air, |
| Maximum Inlet Pressure | 10 bar (145 psi) |
| Port Size | G1/8, G1/4, G3/8, G1/2 |
| Drain Type | Closed bottom |
| Operating Temperature | 0 … +60°C (+32 ... +140°F) |
| Flow | 78.4L/s , operating pressure |
| Bowl Material | Transparent Polycarbonate |
| Materials | 1/8” & 1/4” Body |
| Bowl Capacity | G1/8 & G1/4: 20 ml |
| Medium | Compressed air, filtered to better than 40 μm |
| Maximum Supply Pressure | 10 bar (145 psi) |
| Flow | 78.4L/s , operating pressure 6.3bar with 0.5bar pressure drop, Port size 1/2” |
| Bowl Capacity | G1/8 & G1/4: 20 ml G3/8 & G1/2: 85 ml Start point *1): 1/8” & 1/4”: 0,25 l/s 3/8”, 1/2”: 0,5 l/s *1) Minimum flow ra te for lubricator operation at 5 bar |
| Operating Temperature | 0 … +60°C (+32 ... +140°F) Air supply must be dry enough to avoid ice formation at temperatures below +2°C (+35°F). |
| Materials | 1/8” & 1/4” Body: Polyamide 3/8” & 1/2” Body: Die casting Aluminum Bowl: Transparent Polycarbonate Bowl cover: Polyamide Elastomers: Nitrile |
| Port Size | C Bracket Page 4 T Bracket *1) Page 4 Lubricator bowl G1/8 & G1/4 49B-021 49B-031 49B-LB1 G3/8 & G1/2 49B-022 49B-032 49B-LB2 1) T Bracket can be used only when two or more parts of the same port size, or with other 49 Series FRL |
