Explore performance details, construction highlights, applications, and technical information in one clear overview.

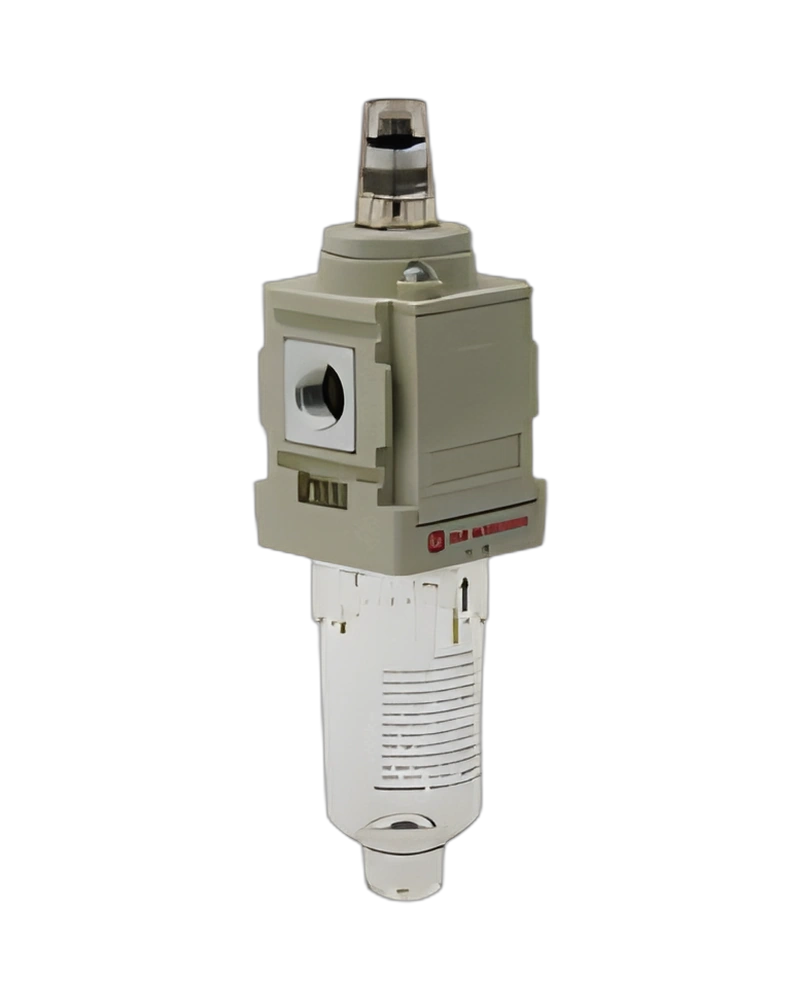

L49C-4GP-EWN is listed as 49 Series Lubricator, G1/2. The following sections present the recorded product configuration and technical values for this exact model.
Medium: Compressed air,; Maximum Inlet Pressure: 10 bar (145 psi); Port Size: G1/8, G1/4, G3/8, G1/2; Drain Type: Closed bottom; Operating Temperature: 0 … +60°C (+32 ... +140°F); Flow: 78.4L/s , operating pressure; Bowl Material: Transparent Polycarbonate; Materials: 1/8” & 1/4” Body; Bowl Capacity: G1/8 & G1/4: 20 ml; Medium: Compressed air, filtered to better than 40 μm; Maximum Supply Pressure: 10 bar (145 psi); Flow: 78.4L/s , operating pressure 6.3bar with 0.5bar pressure drop, Port size 1/2”; Bowl Capacity: G1/8 & G1/4: 20 ml G3/8 & G1/2: 85 ml Start point *1): 1/8” & 1/4”: 0,25 l/s 3/8”, 1/2”: 0,5 l/s *1) Minimum flow ra te for lubricator operation at 5 bar; Operating Temperature: 0 … +60°C (+32 ... +140°F) Air supply must be dry enough to avoid ice formation at temperatures below +2°C (+35°F).; Materials: 1/8” & 1/4” Body: Polyamide 3/8” & 1/2” Body: Die casting Aluminum Bowl: Transparent Polycarbonate Bowl cover: Polyamide Elastomers: Nitrile; Port Size: C Bracket Page 4 T Bracket *1) Page 4 Lubricator bowl G1/8 & G1/4 49B-021 49B-031 49B-LB1 G3/8 & G1/2 49B-022 49B-032 49B-LB2 1) T Bracket can be used only when two or more parts of the same port size, or with other 49 Series FRL
Medium is specified as Compressed air,. Maximum Inlet Pressure is specified as 10 bar (145 psi). Port Size is specified as G1/8, G1/4, G3/8, G1/2. Drain Type is specified as Closed bottom. Operating Temperature is specified as 0 … +60°C (+32 ... +140°F). Flow is specified as 78.4L/s , operating pressure. Bowl Material is specified as Transparent Polycarbonate. Materials is specified as 1/8” & 1/4” Body. Bowl Capacity is specified as G1/8 & G1/4: 20 ml. Medium is specified as Compressed air, filtered to better than 40 μm. Maximum Supply Pressure is specified as 10 bar (145 psi). Flow is specified as 78.4L/s , operating pressure 6.3bar with 0.5bar pressure drop, Port size 1/2”. Bowl Capacity is specified as G1/8 & G1/4: 20 ml G3/8 & G1/2: 85 ml Start point *1): 1/8” & 1/4”: 0,25 l/s 3/8”, 1/2”: 0,5 l/s *1) Minimum flow ra te for lubricator operation at 5 bar. Operating Temperature is specified as 0 … +60°C (+32 ... +140°F) Air supply must be dry enough to avoid ice formation at temperatures below +2°C (+35°F).. Materials is specified as 1/8” & 1/4” Body: Polyamide 3/8” & 1/2” Body: Die casting Aluminum Bowl: Transparent Polycarbonate Bowl cover: Polyamide Elastomers: Nitrile. Port Size is specified as C Bracket Page 4 T Bracket *1) Page 4 Lubricator bowl G1/8 & G1/4 49B-021 49B-031 49B-LB1 G3/8 & G1/2 49B-022 49B-032 49B-LB2 1) T Bracket can be used only when two or more parts of the same port size, or with other 49 Series FRL.
Languages 0 Basket Products
| Specification | Value |
|---|---|
| Medium | Compressed air, |
| Maximum Inlet Pressure | 10 bar (145 psi) |
| Port Size | G1/8, G1/4, G3/8, G1/2 |
| Drain Type | Closed bottom |
| Operating Temperature | 0 … +60°C (+32 ... +140°F) |
| Flow | 78.4L/s , operating pressure |
| Bowl Material | Transparent Polycarbonate |
| Materials | 1/8” & 1/4” Body |
| Bowl Capacity | G1/8 & G1/4: 20 ml |
| Medium | Compressed air, filtered to better than 40 μm |
| Maximum Supply Pressure | 10 bar (145 psi) |
| Flow | 78.4L/s , operating pressure 6.3bar with 0.5bar pressure drop, Port size 1/2” |
| Bowl Capacity | G1/8 & G1/4: 20 ml G3/8 & G1/2: 85 ml Start point *1): 1/8” & 1/4”: 0,25 l/s 3/8”, 1/2”: 0,5 l/s *1) Minimum flow ra te for lubricator operation at 5 bar |
| Operating Temperature | 0 … +60°C (+32 ... +140°F) Air supply must be dry enough to avoid ice formation at temperatures below +2°C (+35°F). |
| Materials | 1/8” & 1/4” Body: Polyamide 3/8” & 1/2” Body: Die casting Aluminum Bowl: Transparent Polycarbonate Bowl cover: Polyamide Elastomers: Nitrile |
| Port Size | C Bracket Page 4 T Bracket *1) Page 4 Lubricator bowl G1/8 & G1/4 49B-021 49B-031 49B-LB1 G3/8 & G1/2 49B-022 49B-032 49B-LB2 1) T Bracket can be used only when two or more parts of the same port size, or with other 49 Series FRL |
