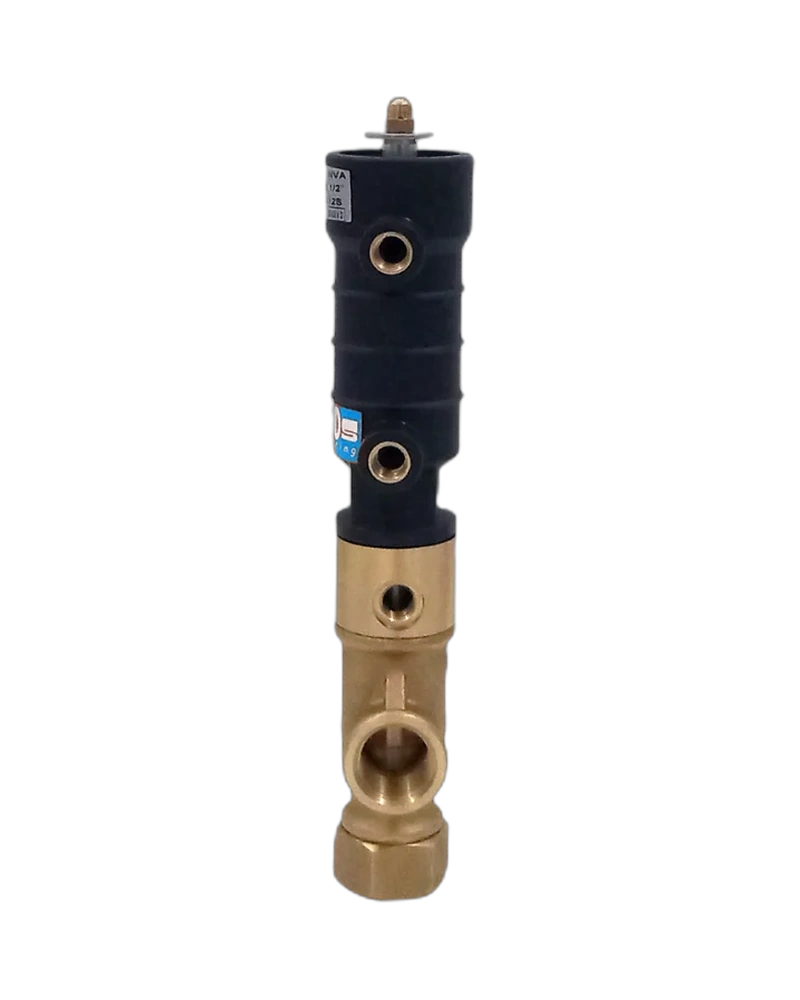

3-way vacuum/vacuum breaker valve - INVA NYLON - 63012 - 1/2"

3-way vacuum/vacuum breaker valve - INVA NYLON - 63012 - 1/2" is a MAROS Engineering solution for industrial automation and fluid or vacuum control. MAROS code: 63012; Selected size: 2". The configuration is presented with the manufacturer-published technical characteristics relevant to this product entry.

Product Overview

Type: 3-way vacuum/vacuum-breaker valve. Size range: 1/2"–2" (PN16). Pipe threads: F/F gas ISO228. Actuator: Double Acting (DA). Ambient temperature: 0/+60°C. The product configuration is intended for applications where the stated valve or actuator design, connection arrangement, operating range and construction materials are required.

Configuration

MAROS code: 63012; Selected size: 2". The selected nominal size and manufacturer code are retained exactly from the product record. Where MAROS publishes multiple versions, the applicable actuation, connection, pressure, temperature, sealing and material choices are included in the technical information below.

Technical Specifications

Type: 3-way vacuum/vacuum-breaker valve. Size range: 1/2"–2" (PN16). Pipe threads: F/F gas ISO228. Actuator: Double Acting (DA). Ambient temperature: 0/+60°C. Pilot pressure: min. 4.0 bar–max. 7.0 bar. Valve body: brass. Cylinder spacer: brass for 1/2"–3/4" and anodized aluminium for 1"–2". Seal holder: brass. Piston: aluminium. Cylinder: heat-stabilized PA66 nylon. Piston rod: stainless steel AISI 304. Internal O-rings: FKM. Shutter seal: FKM. Valve status indicator: stem. PTFE or EPDM shutter seal available on request.

Construction and Materials

Type: 3-way vacuum/vacuum-breaker valve. Size range: 1/2"–2" (PN16). Pipe threads: F/F gas ISO228. Actuator: Double Acting (DA). Ambient temperature: 0/+60°C. Pilot pressure: min. 4.0 bar–max. 7.0 bar. Valve body: brass. Cylinder spacer: brass for 1/2"–3/4" and anodized aluminium for 1"–2". Seal holder: brass. Piston: aluminium. Cylinder: heat-stabilized PA66 nylon. Piston rod: stainless steel AISI 304. Internal O-rings: FKM. Shutter seal: FKM. Valve status indicator: stem. PTFE or EPDM shutter seal available on request.

Applications

3-way vacuum/vacuum breaker valve - INVA NYLON - 63012 - 1/2" 3-way vacuum/vacuum breaker valve - INVA NYLON - 63012 - 1/2" is an for industrial automation and pneumatic fluid or vacuum control. Type: 3-way vacuum/vacuum-breaker valve. Technical Specifications Type: 3-way vacuum/vacuum-breaker valve.

Available Options

• MAROS Engineering INVA NYLON family
• MAROS configuration code 63012; nominal size 2"
• Official manufacturer construction and technical configuration
• Published actuation and connection characteristics
• Published pressure and temperature limits where specified
• Published materials, seals and available options where applicable
