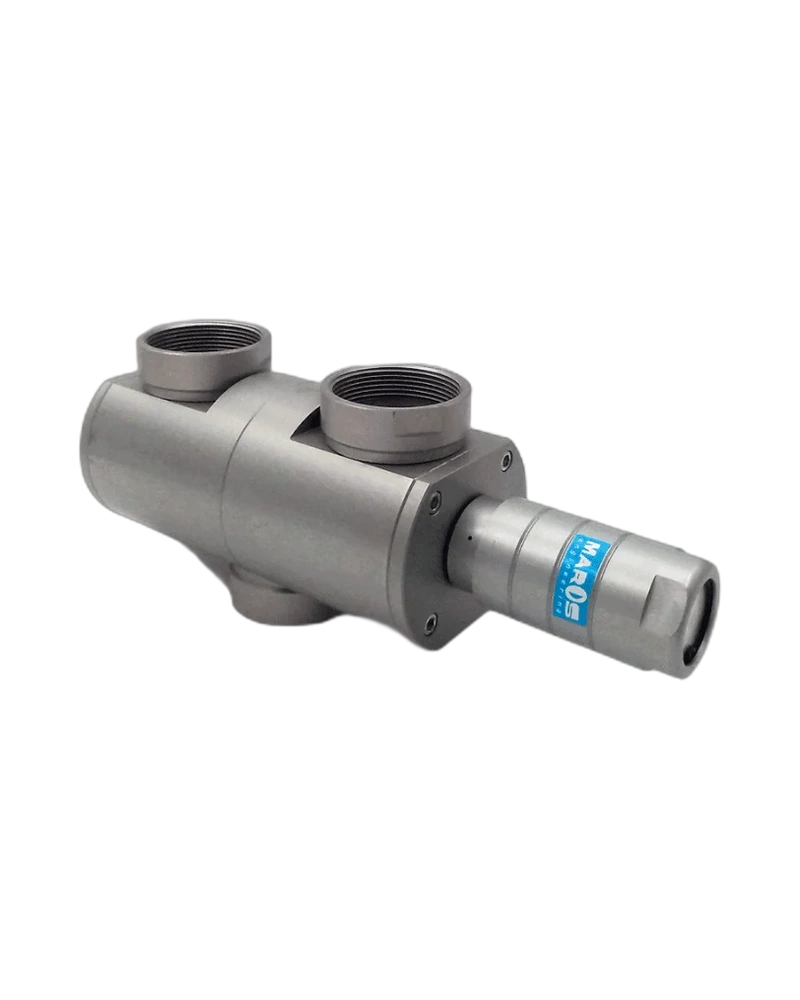

3-Way Reversing Valve 2 Positions - INVA 32 - VD32311224 - 1”1/2 is a MAROS Engineering solution for industrial automation and fluid or vacuum control. MAROS code: VD32311224; Selected size: 2. The configuration is presented with the manufacturer-published technical characteristics relevant to this product entry.
Type: 3-way 2-position reversing vacuum valve. Sizes: 1"1/2, 2", 2"1/2. Pipe threads: F/F gas ISO228. Actuation: single acting with electric actuator or double acting with pneumatic actuator. Maximum fluid temperature: +140°C based on MAROS Engineering testing. The product configuration is intended for applications where the stated valve or actuator design, connection arrangement, operating range and construction materials are required.
MAROS code: VD32311224; Selected size: 2. The selected nominal size and manufacturer code are retained exactly from the product record. Where MAROS publishes multiple versions, the applicable actuation, connection, pressure, temperature, sealing and material choices are included in the technical information below.
Type: 3-way 2-position reversing vacuum valve. Sizes: 1"1/2, 2", 2"1/2. Pipe threads: F/F gas ISO228. Actuation: single acting with electric actuator or double acting with pneumatic actuator. Maximum fluid temperature: +140°C based on MAROS Engineering testing. Ambient temperature: 0/+60°C. Valve body and seal holder: anodized aluminium. Shutter seal: FKM. Pneumatic version: double acting, anodized aluminium or Nylon PA66 cylinder, pilot pressure min. 4 bar–max. 6 bar. Electric version: single acting, 24 VDC, power coil 23 A, holding coil 0.28 A, FASTON connections. ATEX, 2-reed switch box and PTFE/EPDM seal options are available as stated by MAROS.
Type: 3-way 2-position reversing vacuum valve. Sizes: 1"1/2, 2", 2"1/2. Pipe threads: F/F gas ISO228. Actuation: single acting with electric actuator or double acting with pneumatic actuator. Maximum fluid temperature: +140°C based on MAROS Engineering testing. Ambient temperature: 0/+60°C. Valve body and seal holder: anodized aluminium. Shutter seal: FKM. Pneumatic version: double acting, anodized aluminium or Nylon PA66 cylinder, pilot pressure min. 4 bar–max. 6 bar. Electric version: single acting, 24 VDC, power coil 23 A, holding coil 0.28 A, FASTON connections. ATEX, 2-reed switch box and PTFE/EPDM seal options are available as stated by MAROS.
3-Way Reversing Valve 2 Positions - INVA 32 - VD32311224 - 1”1/2 3-Way Reversing Valve 2 Positions - INVA 32 - VD32311224 - 1”1/2 is an for industrial automation and pneumatic fluid or vacuum control. Type: 3-way 2-position reversing vacuum valve. Maximum fluid temperature: +140°C based on MAROS Engineering testing.
| Feature | Specification |
|---|---|
| Type | 3-way 2-position reversing vacuum valve |
| Sizes | 1"1/2, 2", 2"1/2 |
| Pipe threads | F/F gas ISO228 |
| Actuation | single acting with electric actuator or double acting with pneumatic actuator |
| Maximum fluid temperature | +140°C based on MAROS Engineering testing |
| Ambient temperature | 0/+60°C |
| Valve body and seal holder | anodized aluminium |
| Shutter seal | FKM |
| Pneumatic version | double acting, anodized aluminium or Nylon PA66 cylinder, pilot pressure min. 4 bar–max. 6 bar |
| Electric version | single acting, 24 VDC, power coil 23 A, holding coil 0.28 A, FASTON connections. ATEX, 2-reed switch box and PTFE/EPDM seal options are available as stated by MAROS |
